Advanced Keyless Entry And Push Button Start System/Immobilizer System

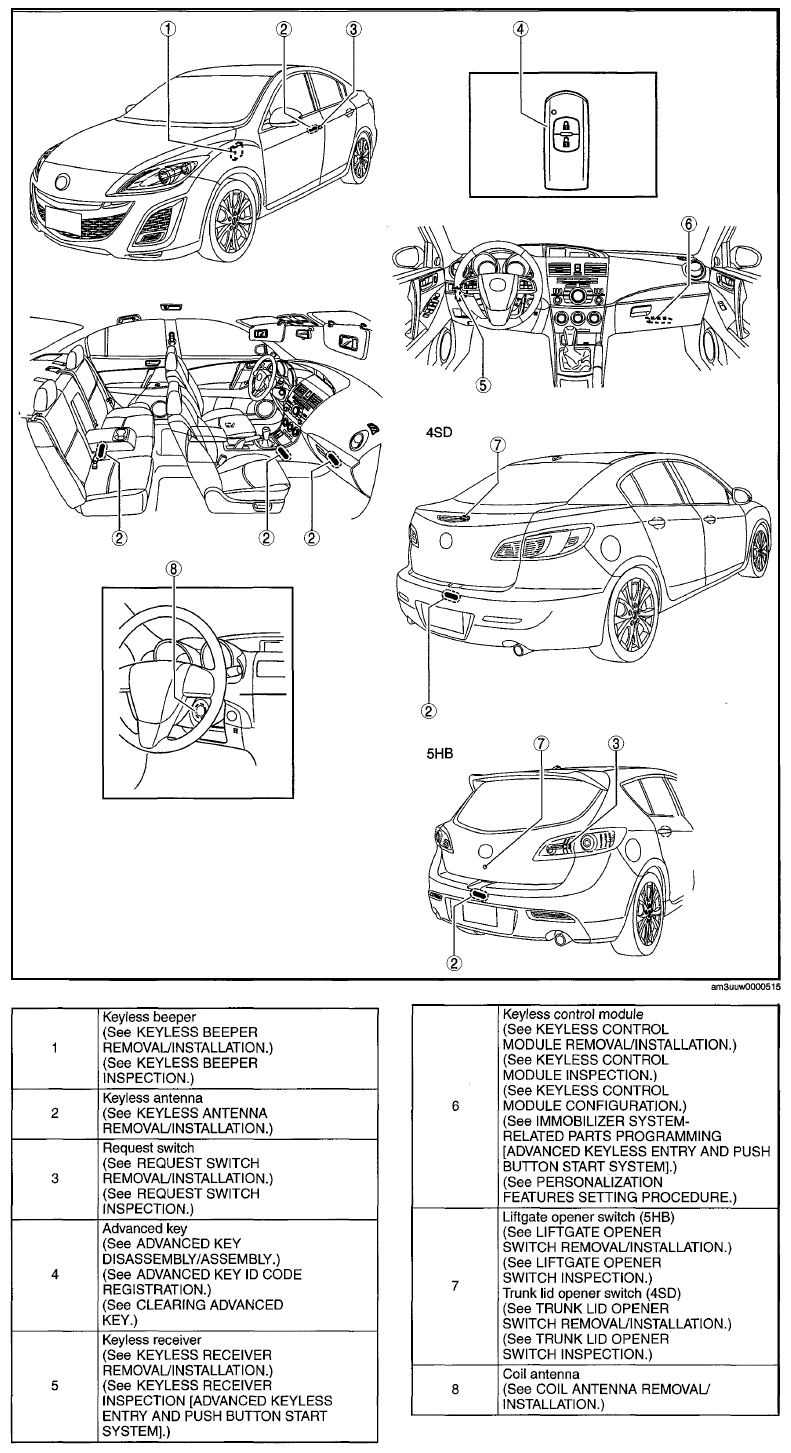

Fig 1: Identifying Advanced Keyless Entry And Push Button Start System/Immobilizer System
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
