3 Mazdaspeed, 2.3 4
›
Repair and Diagnosis
›
Engine Performance
›
Engine Control Systems
›
Engine Control System [L3 With TC]
›
Control System Wiring Diagram
Control System Wiring Diagram

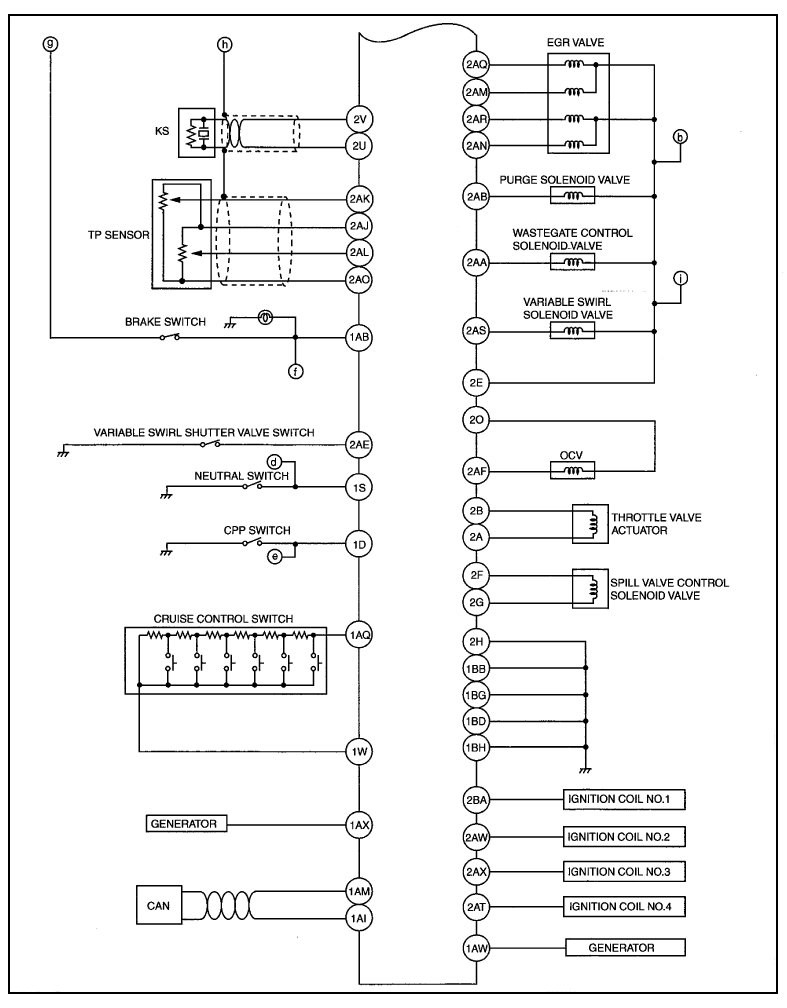

Fig 1: Control System Wiring Diagram
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
