Manifold Absolute Pressure (Map) Sensor/Boost Air Temperature Sensor Removal/Installation

  1. Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [L3 WITH TC] .)
  2. Disconnect the negative battery cable.
  3. Remove the oil level gauge pipe. (See OIL PAN REMOVAL/INSTALLATION .)
  4. Disconnect the MAP/boost air temperature sensor connector.
  5. Remove the MAP/boost air temperature sensor.
  6. Install in the reverse order of removal.

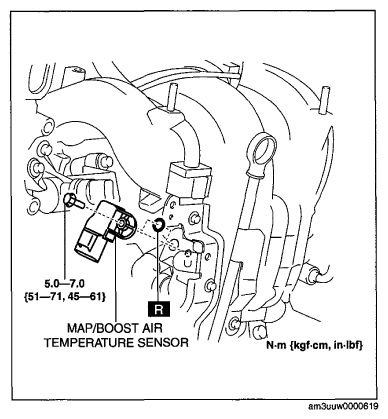

    Fig 1: MAP/Boost Air Temperature Sensor With Torque Specifications
    G06730929Courtesy of MAZDA MOTORS CORP.
