Symptom Troubleshooting [L3 With TC] - Engine
›
Control System Device And Control Relationship Chart
Control System Device And Control Relationship Chart

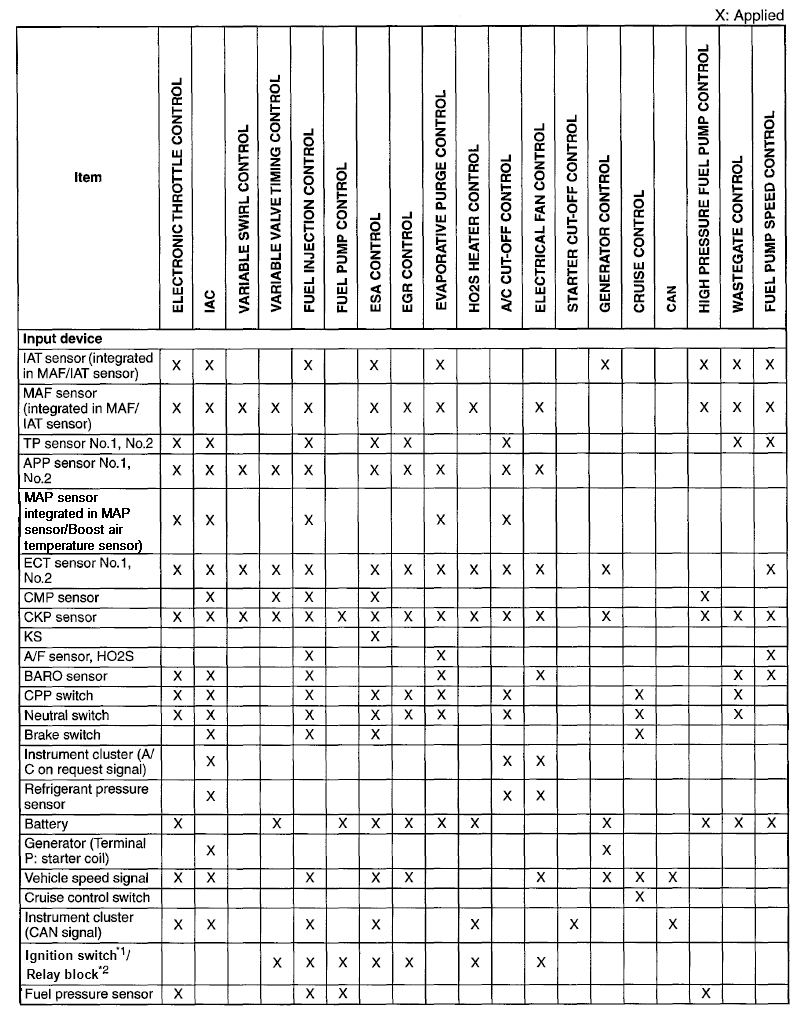

Fig 1: Control System Device And Control Relationship Chart - L3 With TC (1 Of 2)
Courtesy of MAZDA MOTORS CORP.

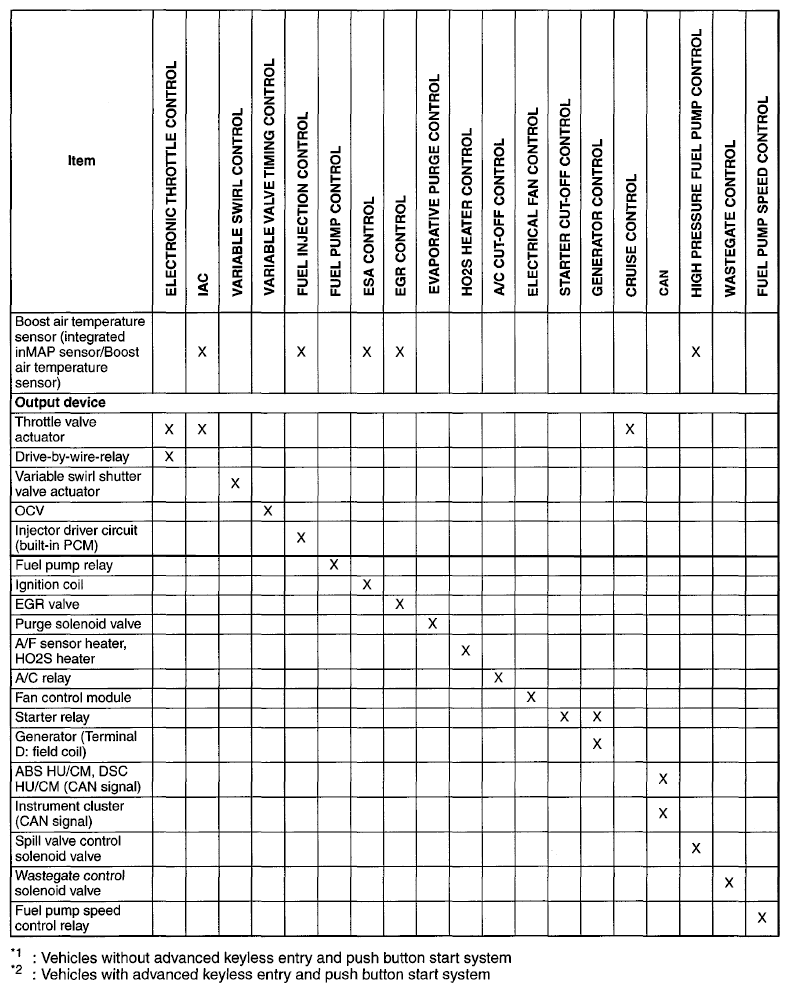

Fig 2: Control System Device And Control Relationship Chart - L3 With TC (2 Of 2)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
