Symptom Troubleshooting [L3 With TC] - Engine
›
Quick Diagnostic Chart
Quick Diagnostic Chart

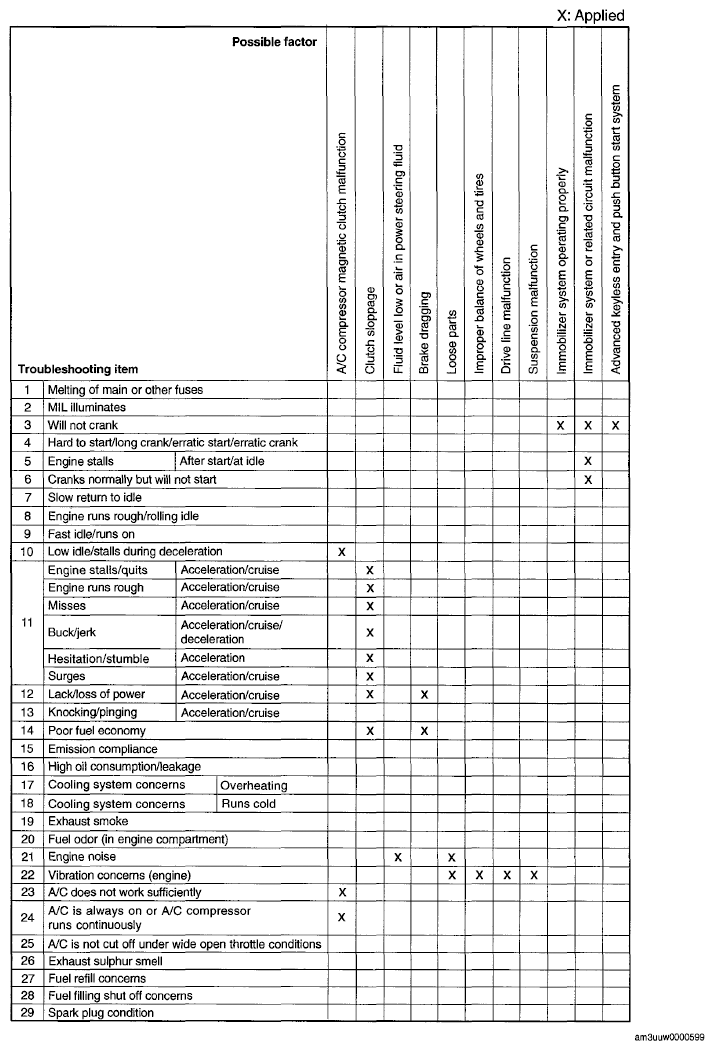

Fig 1: Quick Diagnostic Chart - L3 With TC (1 Of 7)
Courtesy of MAZDA MOTORS CORP.

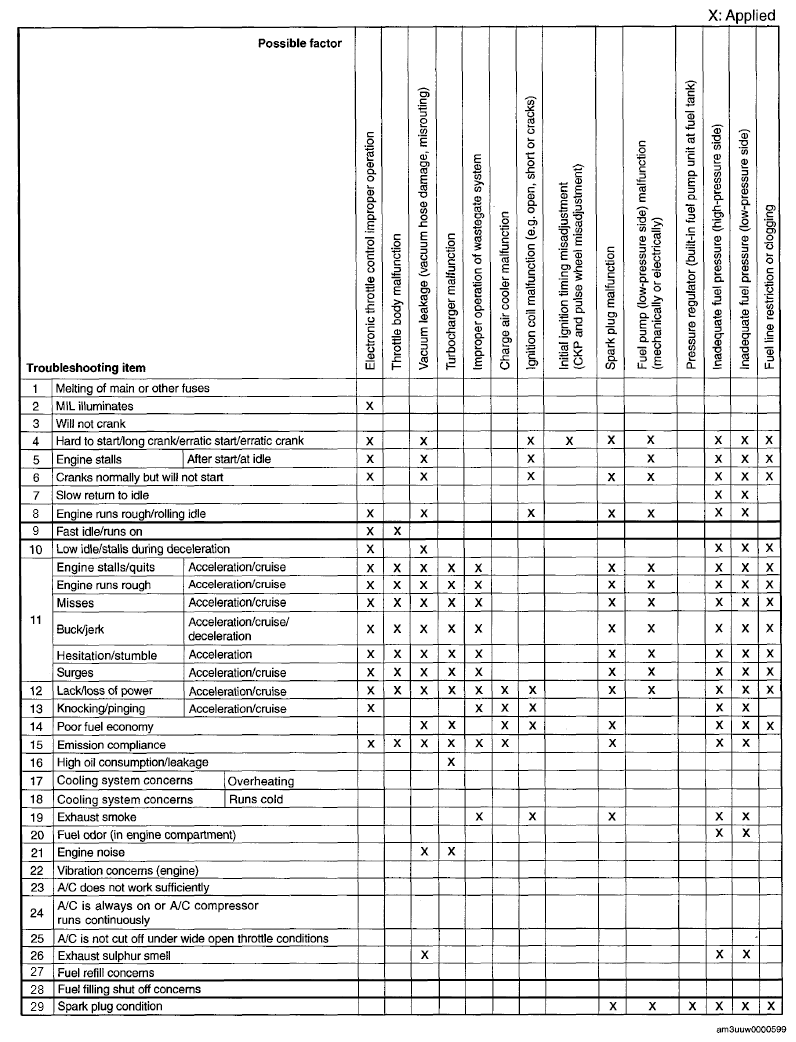

Fig 2: Quick Diagnostic Chart - L3 With TC (2 Of 7)
Courtesy of MAZDA MOTORS CORP.

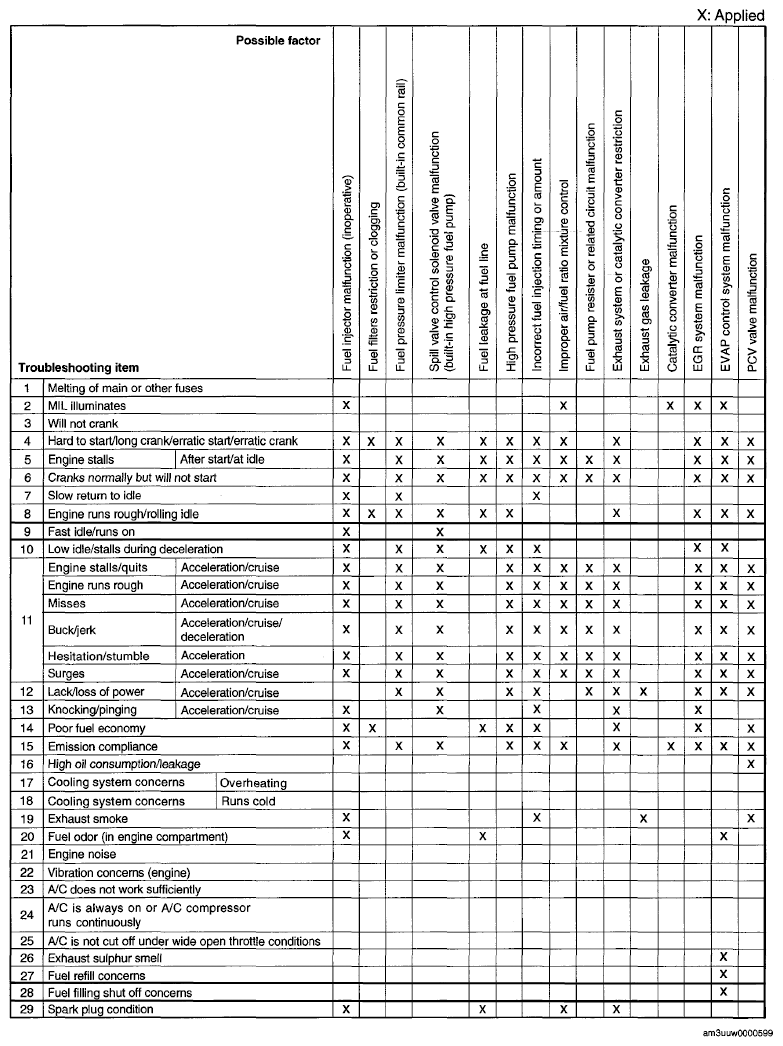

Fig 3: Quick Diagnostic Chart - L3 With TC (3 Of 7)
Courtesy of MAZDA MOTORS CORP.

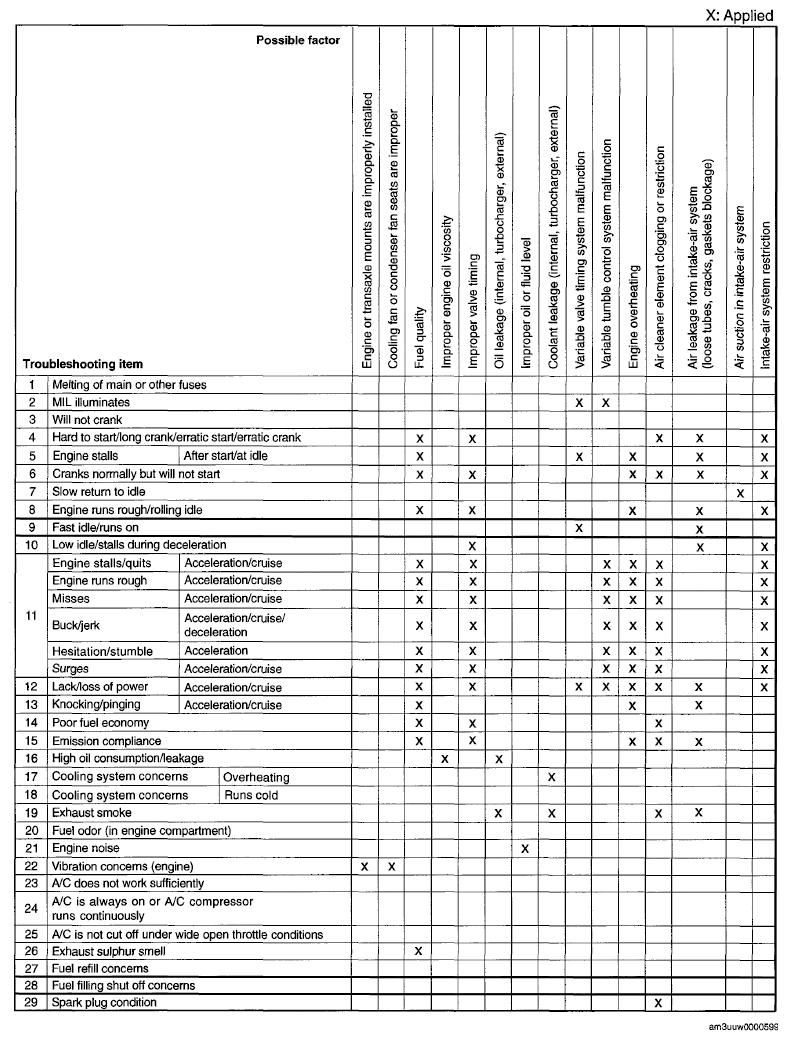

Fig 4: Quick Diagnostic Chart - L3 With TC (4 Of 7)
Courtesy of MAZDA MOTORS CORP.

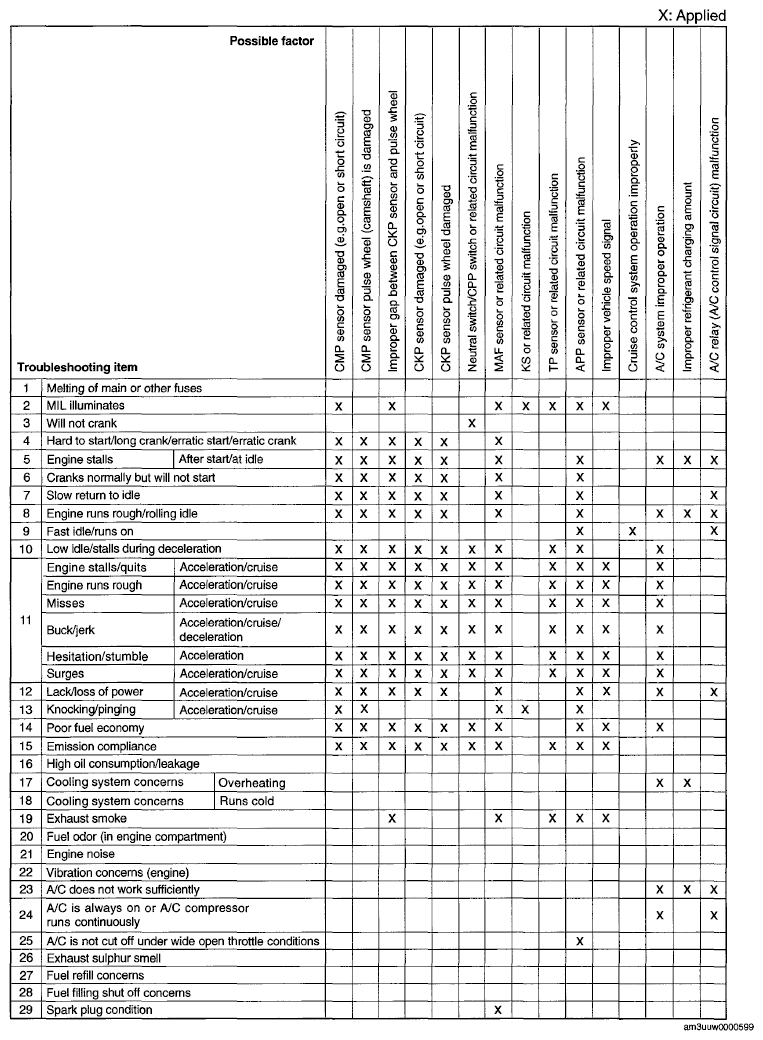

Fig 5: Quick Diagnostic Chart - L3 With TC (5 Of 7)
Courtesy of MAZDA MOTORS CORP.

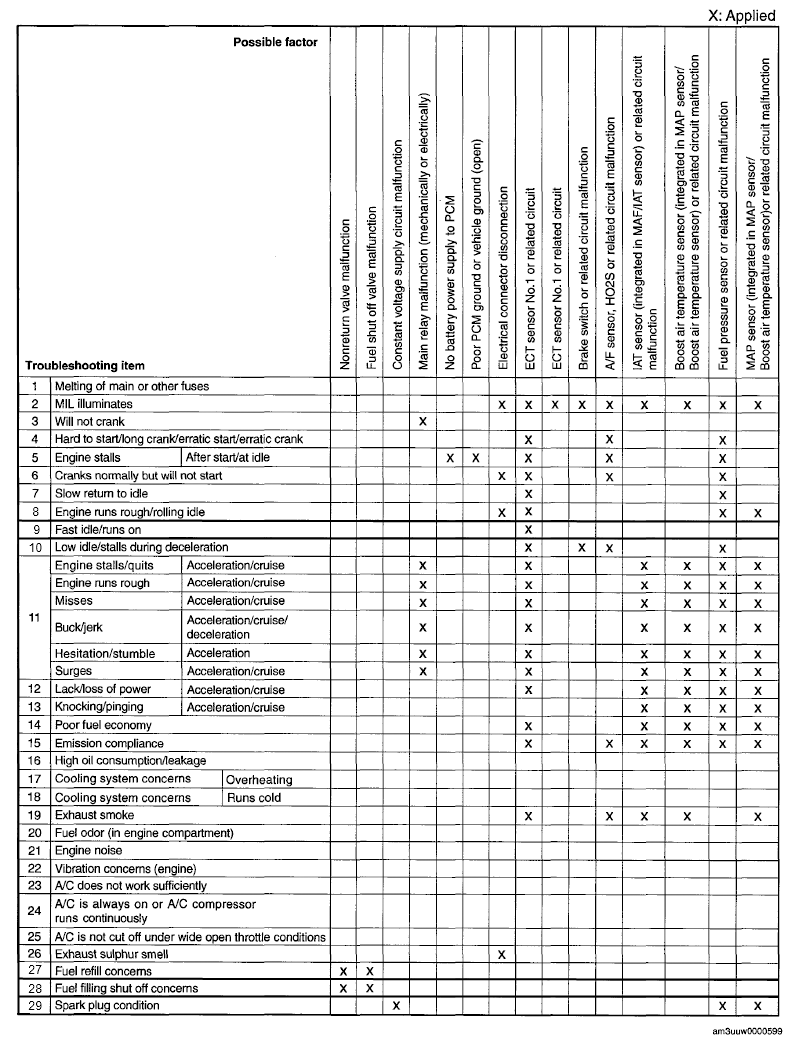

Fig 6: Quick Diagnostic Chart - L3 With TC (6 Of 7)
Courtesy of MAZDA MOTORS CORP.

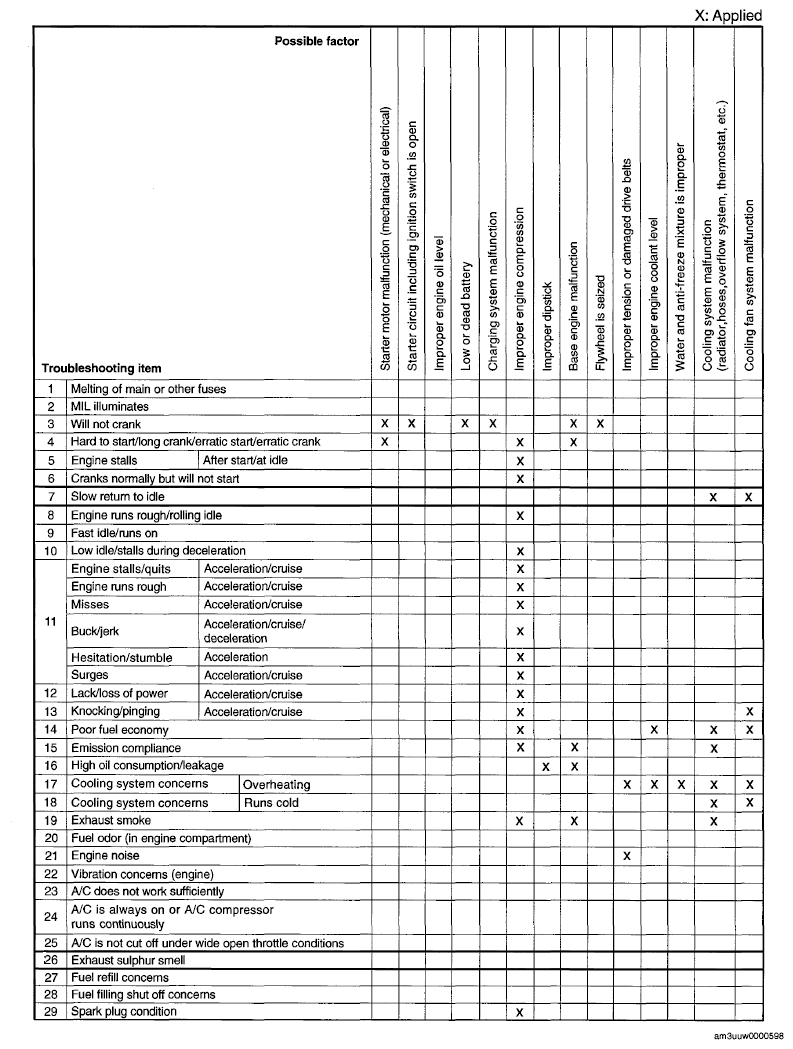

Fig 7: Quick Diagnostic Chart - L3 With TC (7 Of 7)
Courtesy of MAZDA MOTORS CORP.
