Engine Control System [LF, L5]
›
Control System Wiring Diagram
Control System Wiring Diagram

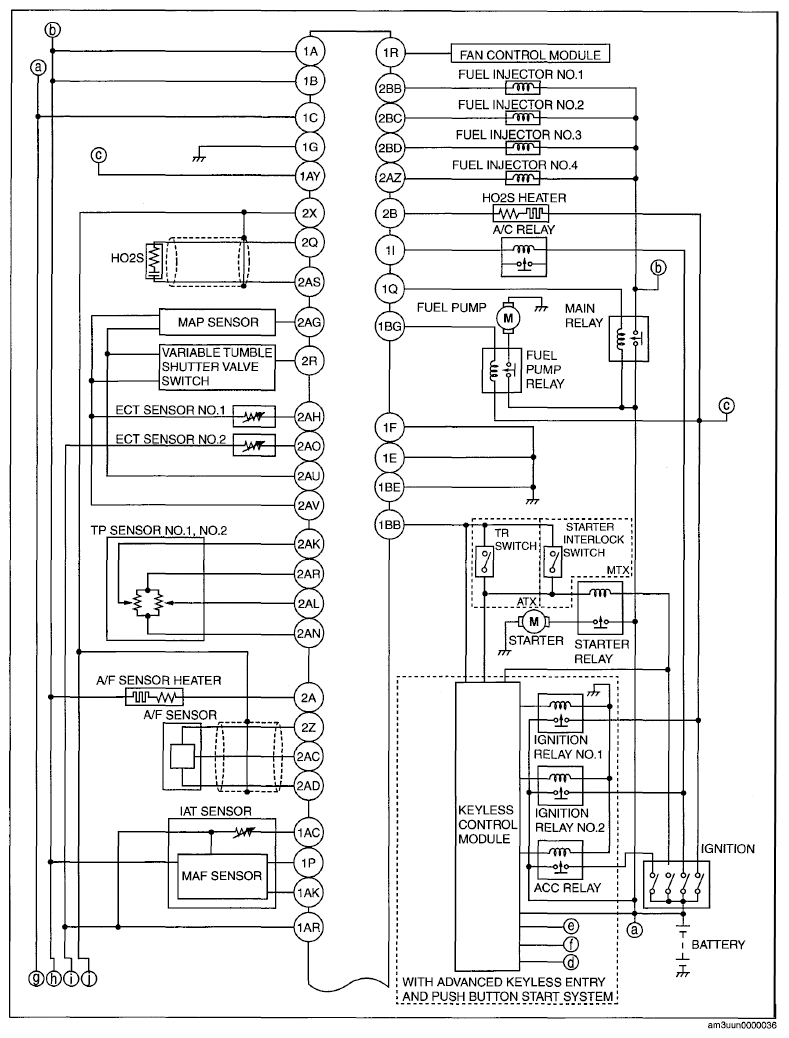

Fig 1: Control System Wiring Diagram (1 Of 2)
Courtesy of MAZDA MOTORS CORP.

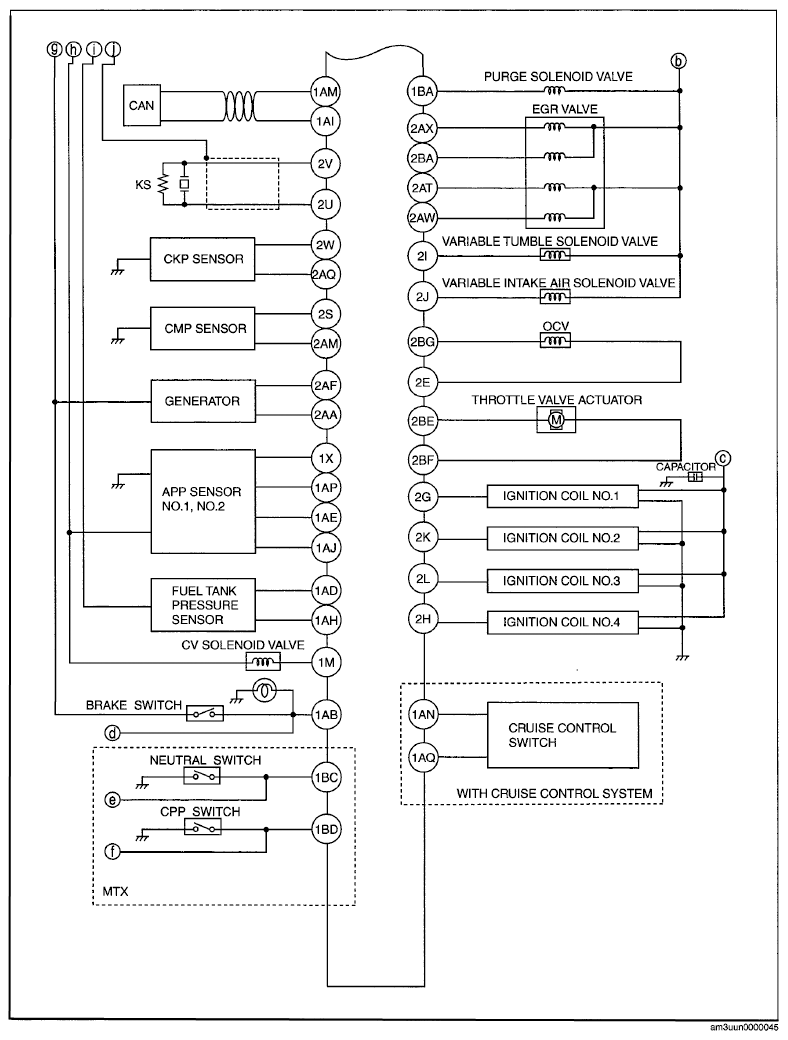

Fig 2: Control System Wiring Diagram (2 Of 2)
Courtesy of MAZDA MOTORS CORP.
