Abs Location Index

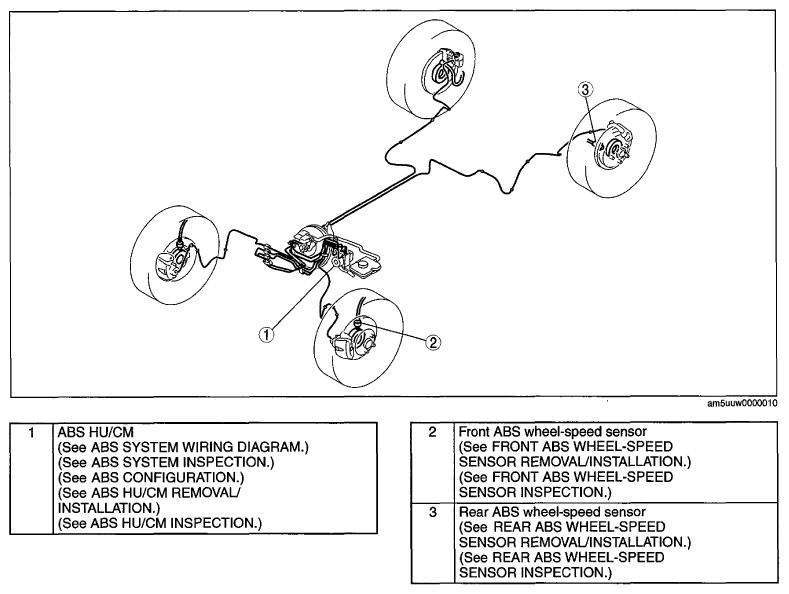

Fig 1: Identifying Antilock Brake System Components Location
G06761246Courtesy of MAZDA MOTORS CORP.
