DSC System Wiring Diagram
DSC System Wiring Diagram

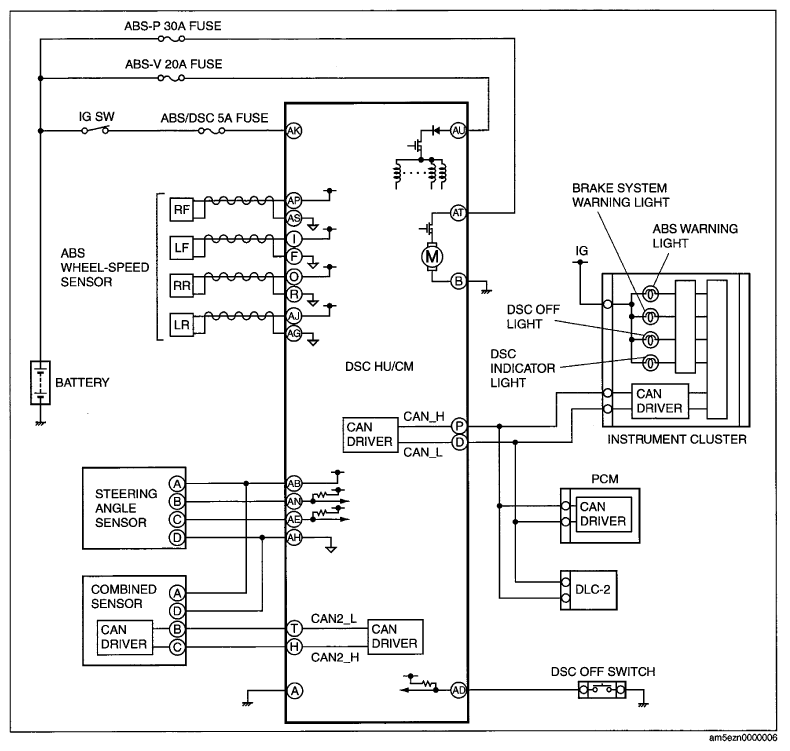

Fig 1: DSC System - Wiring Diagram
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
