Engine Control System [L3]
›
Control System Location Index
Control System Location Index

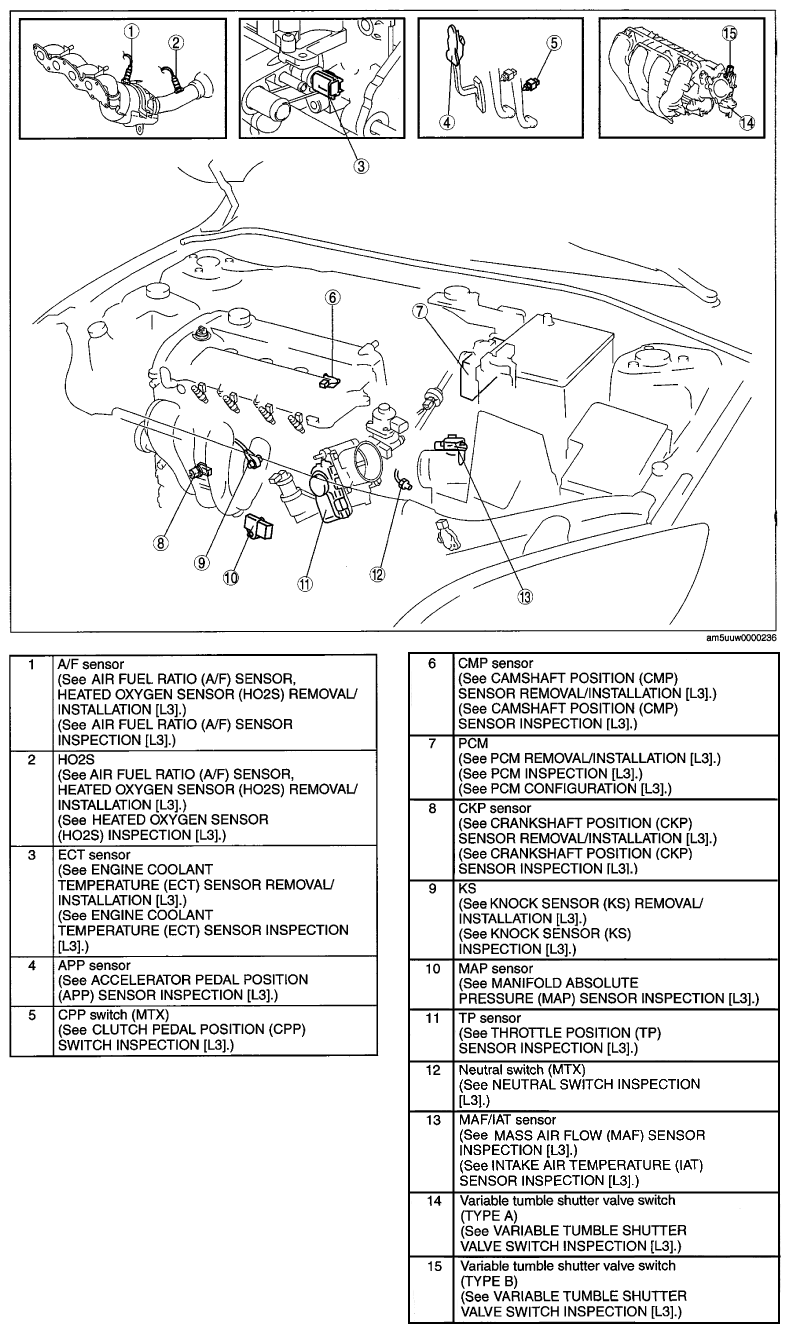

Fig 1: Identifying Control System Components Location
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
