Circuit Open/Short Inspection: Notes

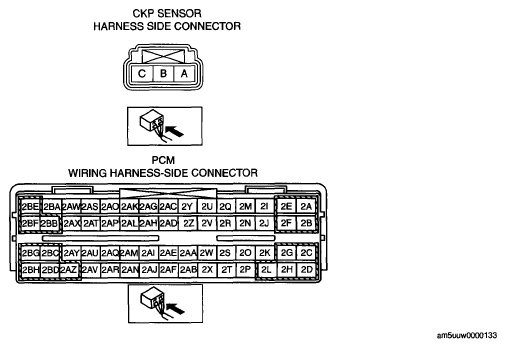

Fig 1: Identifying PCM And CKP Sensor Connector Terminals

Courtesy of MAZDA MOTORS CORP.

1. Disconnect the PCM connector.
2. Inspect the following wiring harnesses for an open or short circuit. (Continuity inspection)
