Circuit Open/Short Inspection: Notes

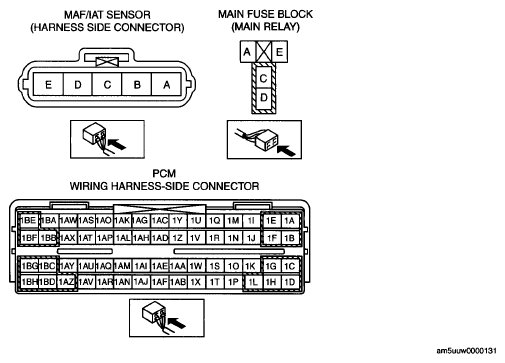

Fig 1: Identifying Mass Air Flow Sensor And PCM Connectors Terminals

Courtesy of MAZDA MOTORS CORP.

1. Disconnect the PCM connector. (See PCM REMOVAL/INSTALLATION .)
2. Disconnect the MAF sensor connector.
3. Inspect the following wiring harnesses for an open or short circuit. (Continuity inspection)
