Fuel Pump Unit Disassembly/Assembly

WARNING:

Fuel line spills and leakage are dangerous. Fuel can ignite and cause serious injuries or death and damage. Fuel can also irritate skin and eyes. To prevent this, do not damage the sealing surface of the fuel pump unit when removing or installing.

Disassemble in the order indicated in the table in illustration.
Assemble in the reverse order of disassembly.

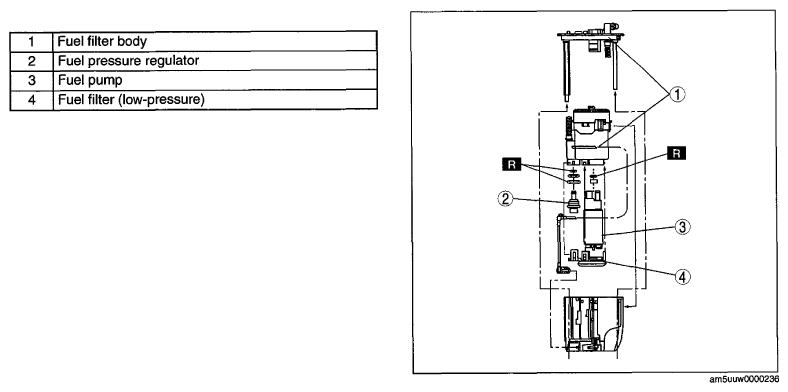

Fig 1: Identifying Fuel Pump Unit Disassemble/Assemble Components
Courtesy of MAZDA MOTORS CORP.
