CX-9 Touring, 3.7 A, AWD
›
Repair and Diagnosis
›
Engine Performance
›
Engine Control Systems
›
Engine Control System [MZI-3.7]
›
Control System Diagram [MZI-3.7]
Control System Diagram [MZI-3.7]

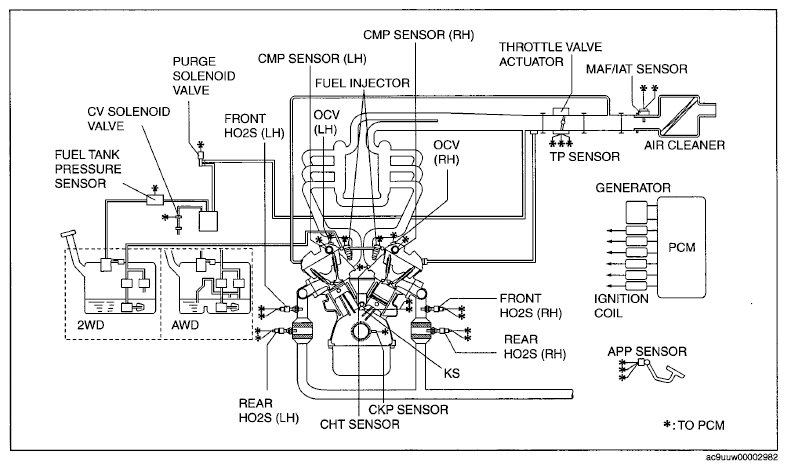

Fig 1: Control System Diagram
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
