Monitoring System And Control System Device Relationship Chart [13B-MSP]
Monitoring System And Control System Device Relationship Chart [13B-MSP]
x: Applicable

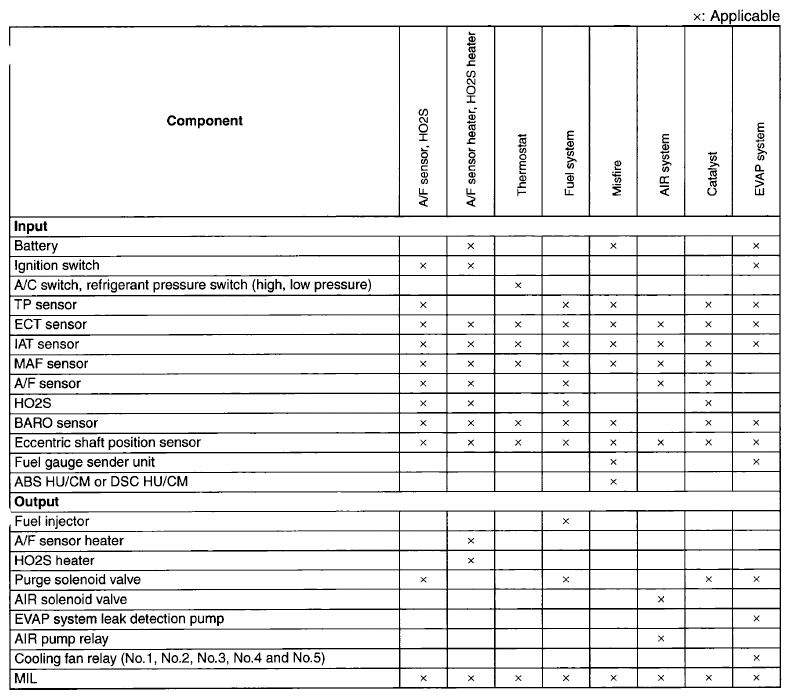

Fig 1: Monitoring System And Control System Device Relationship Chart
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
