Fuel Lines - Exploded View

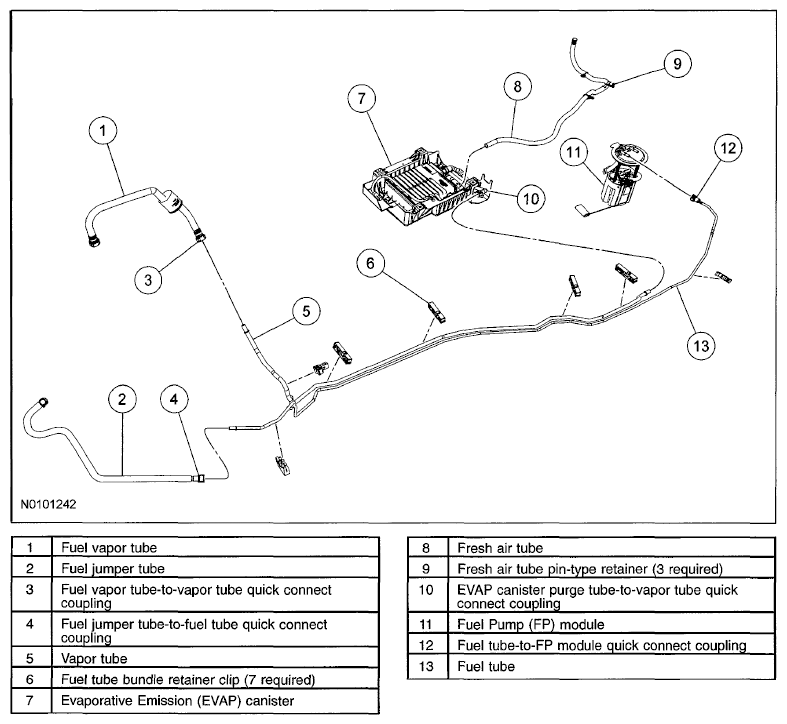

Fig 1: Exploded View Of Fuel Lines (1 Of 2)

Courtesy of MAZDA MOTORS CORP.

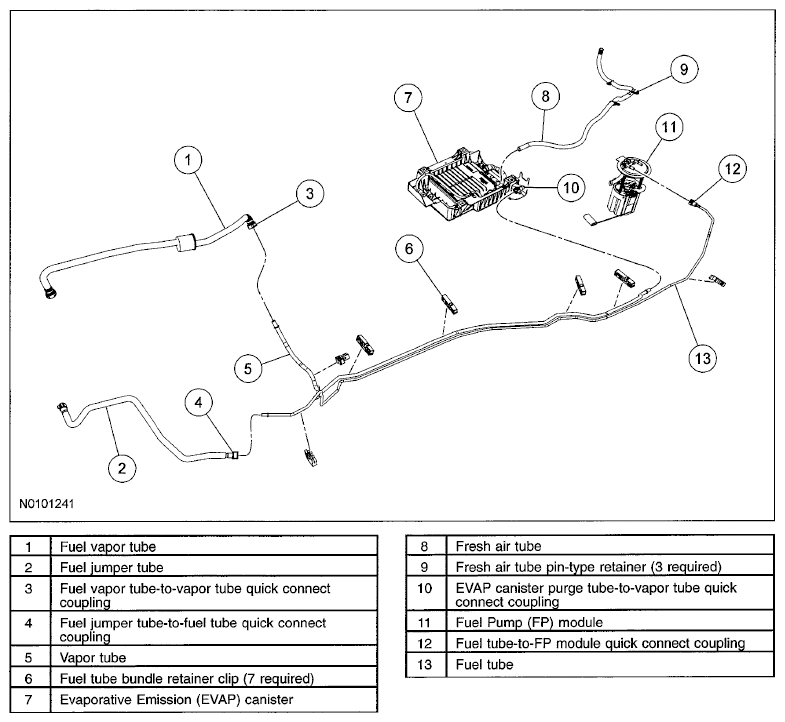

Fig 2: Exploded View Of Fuel Lines (2 Of 2)

Courtesy of MAZDA MOTORS CORP.

1. For additional information, see FUEL LINES REMOVAL/INSTALLATION  .
