Engine Ignition - LH

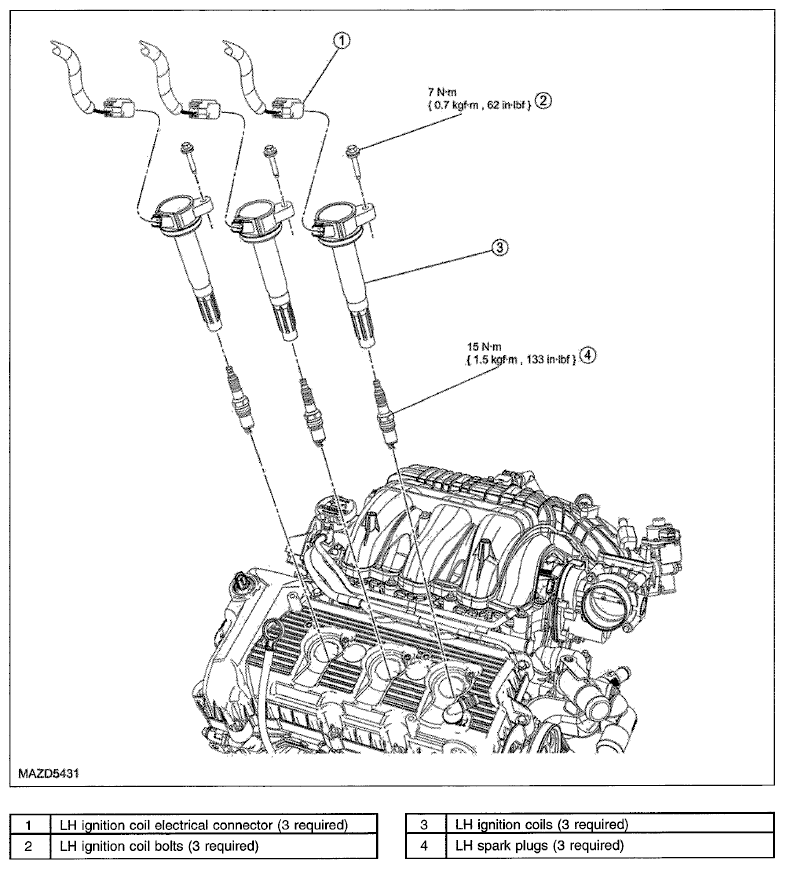

Fig 1: Exploded View Of Engine Ignition Components With Torque Specifications (LH)
G06767325Courtesy of MAZDA MOTORS CORP.
  1. For additional information, see the appropriate procedures in this service information.
