Home › Mazda › 2010 › Tribute Hybrid Touring, AWD › Repair and Diagnosis › Transmission › Automatic Trans › Automatic Transaxle Shift Mechanism › Selector Lever Removal/Installation › Notes

Selector Lever Removal/Installation: Notes

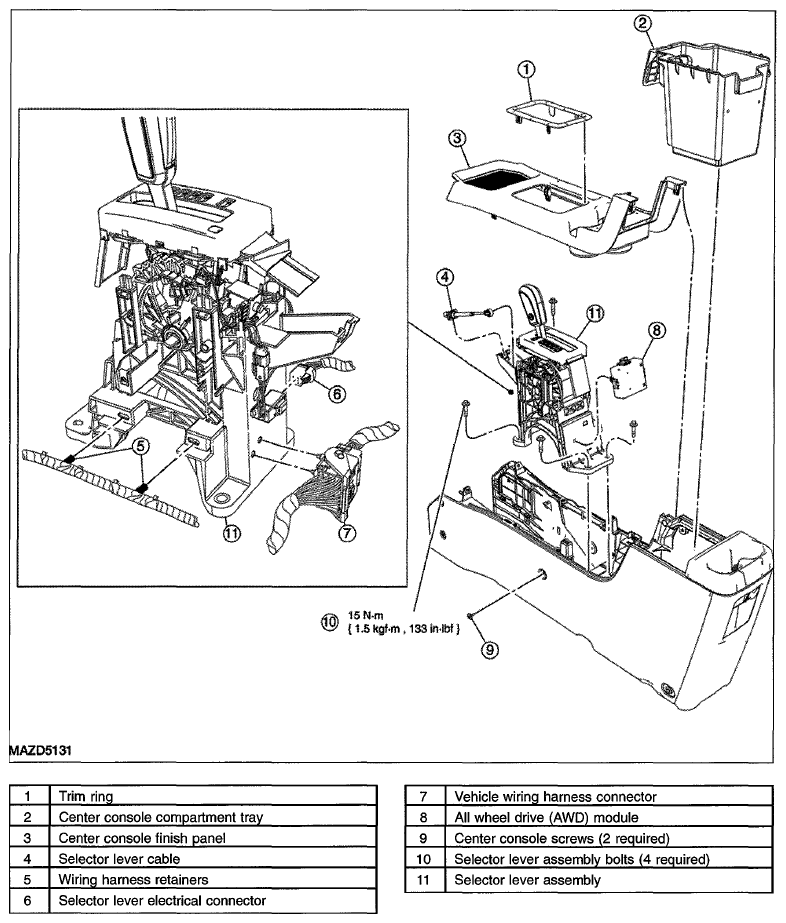

Fig 1: Selector Lever Replacement Components With Torque Specifications
G06767990Courtesy of MAZDA MOTORS CORP.
