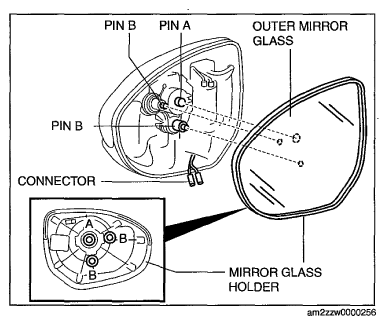

Outer Mirror Glass Installation
- Connect the connector to the outer mirror glass. (Vehicles with heated outer mirror)
- Press part A on the outer mirror glass and install pin A.
- Press part B on the outer mirror glass and install pins B.
Courtesy of MAZDA MOTORS CORP.
