Passenger side

  1. Switch the ignition to off.
  2. Disconnect the negative battery cable.
  3. Remove the front seat. (See FRONT SEAT REMOVAL/INSTALLATION .)
  4. Disconnect the front buckle connector.
  5. Remove the bolt.
  6. Remove the front buckle.
  7. Install in the reverse order of removal.

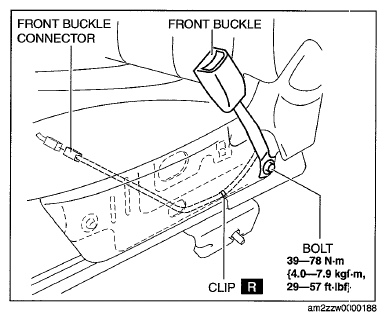

    Fig 1: Front Buckle Connector, Front Buckle, Clip And Bolt With Torque Specifications
    G06941656Courtesy of MAZDA MOTORS CORP.
