Relay Location

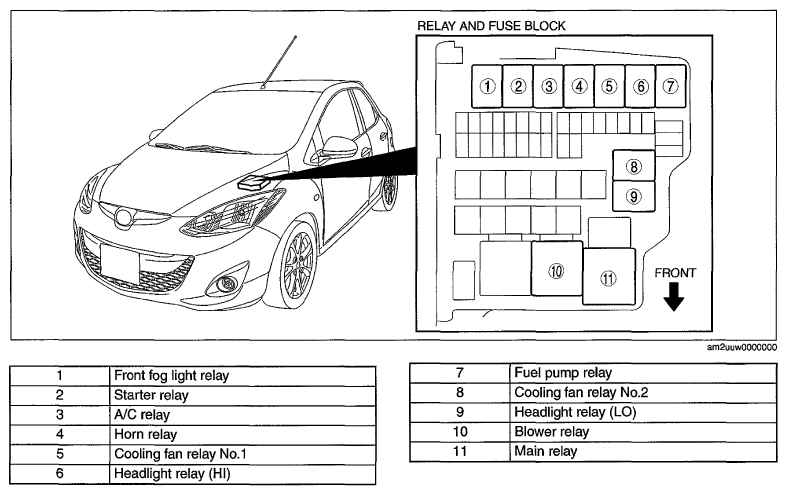

Courtesy of MAZDA MOTORS CORP. ENGINE ROOM RELAY BOX RELAY IDENTIFICATION
| RELAY DESCRIPTION |
| Front Fog Light Relay |
| Starter Relay |
| A/C Relay |
| Horn Relay |
| Cooling Fan Relay No. 1 |
| Headlight Relay (Hi) |
| Fuel Pump Relay |
| Cooling Fan Relay No. 2 |
| Headlight Relay (Lo) |
| Blower Relay |
| Main Relay |
