CONTROL SYSTEM DIAGRAM Input device

Input device

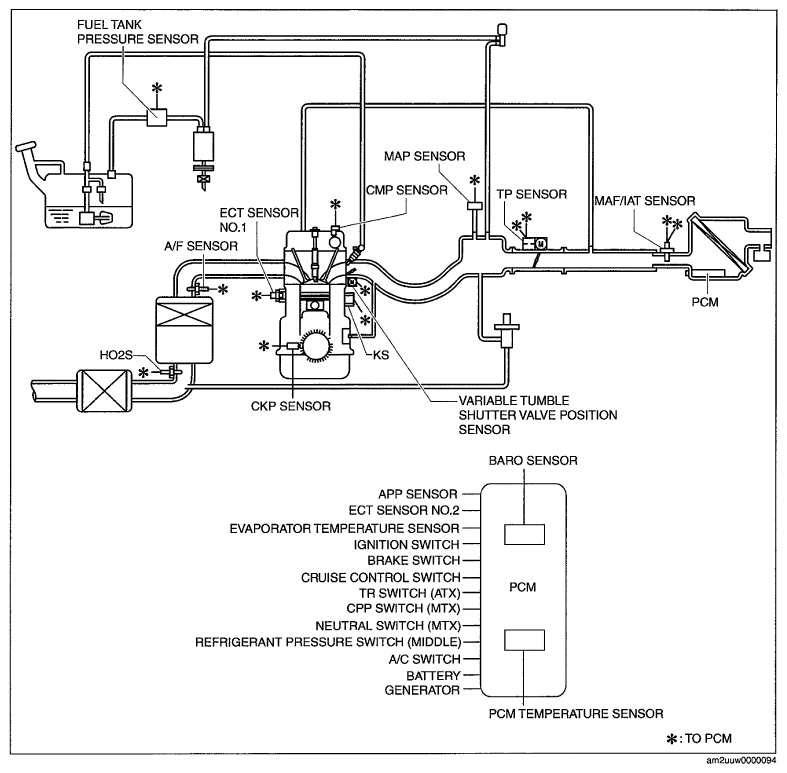

Fig 1: Identifying Control System Input Device

Courtesy of MAZDA MOTORS CORP.

Output device

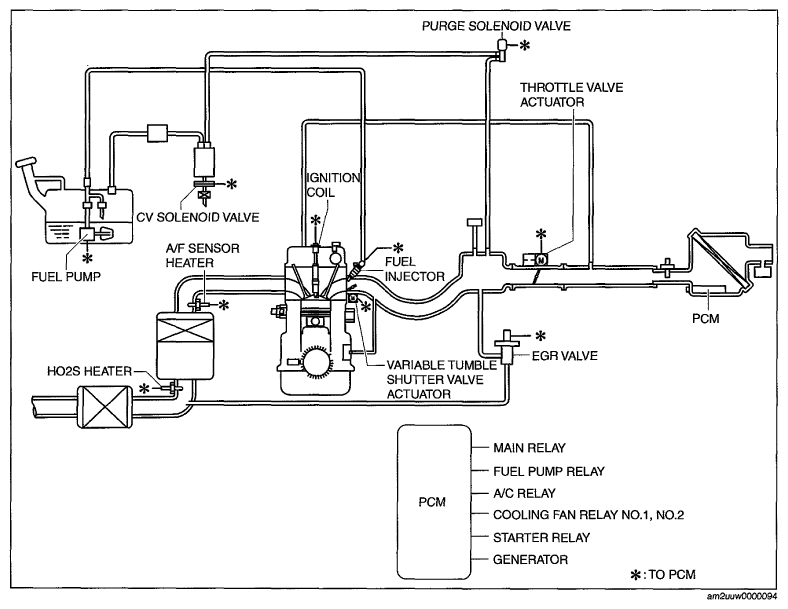

Fig 2: Identifying Control System Output Device

Courtesy of MAZDA MOTORS CORP.
