Repair and Diagnosis
›
Engine Performance
›
Engine Control Systems
›
Engine Control System MZR 1.5
›
Control System Location Index
Control System Location Index

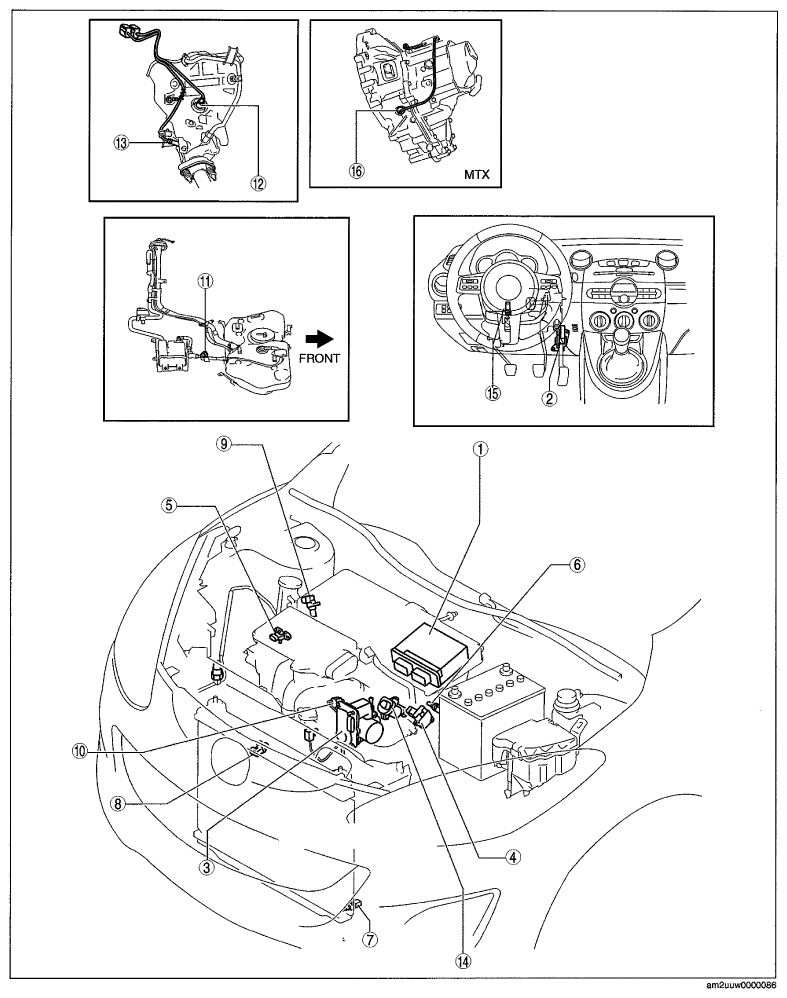

Fig 1: Identifying Control System Location
Courtesy of MAZDA MOTORS CORP.

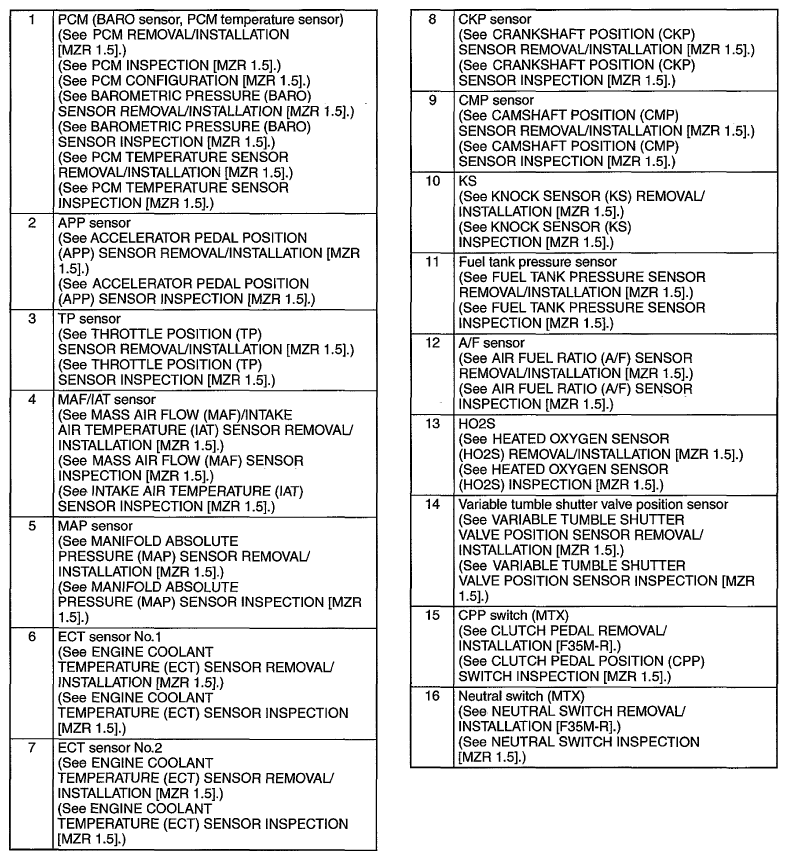

Fig 2: Control System Legends
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
