2 Touring, 1.5 Z, Automatic
›
Repair and Diagnosis
›
Engine Performance
›
Engine Control Systems
›
Engine Control System MZR 1.5
›
Control System Wiring Diagram
Control System Wiring Diagram

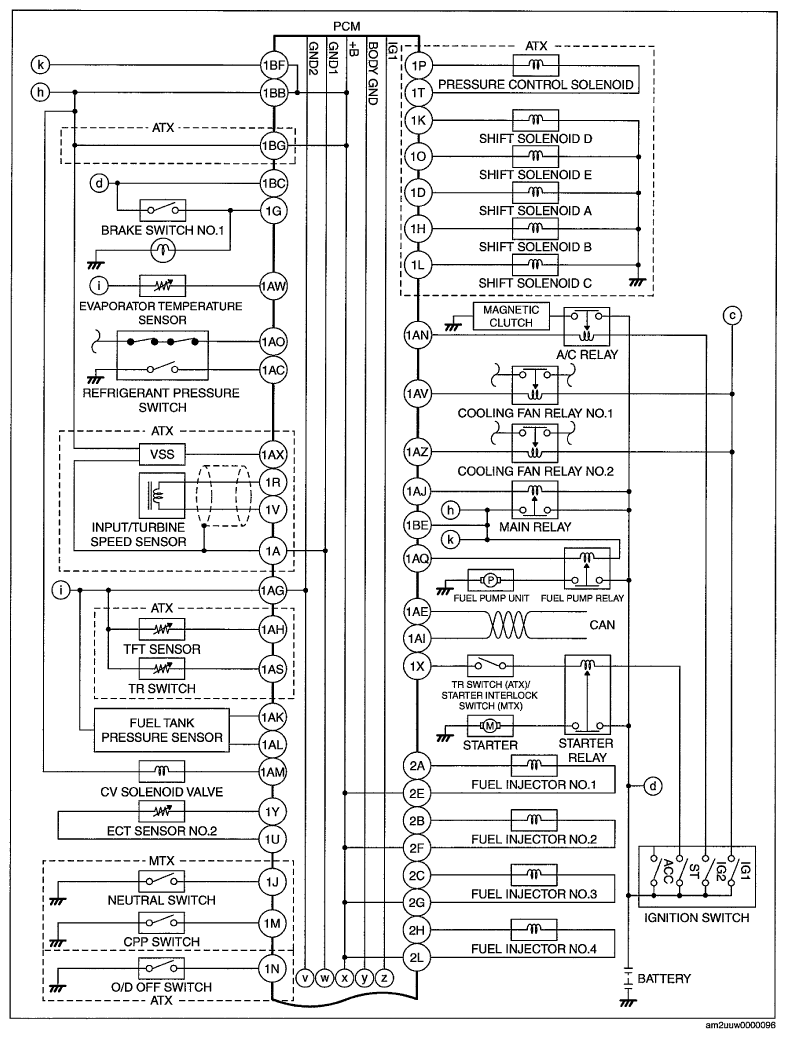

Fig 1: Control System - Wiring Diagram (1 Of 2)
Courtesy of MAZDA MOTORS CORP.

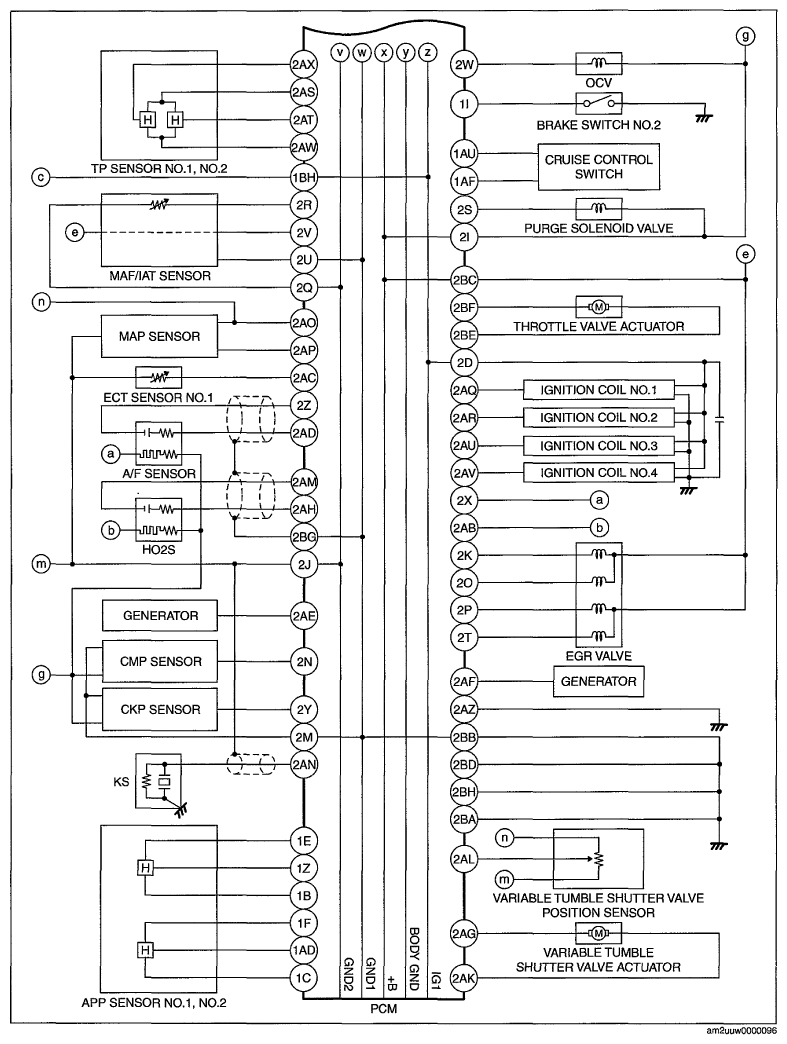

Fig 2: Control System - Wiring Diagram (2 Of 2)
Courtesy of MAZDA MOTORS CORP.
