Selector Cable Installation Note

  1. Working with two people, one person pushes the ends of the selector cable toward the lower side of the vehicle from the inside, and at the same time, the other person pulls the ends of the selector cable.

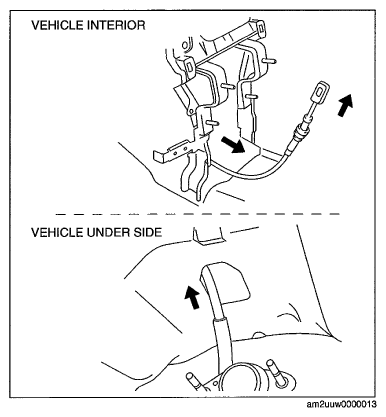

Fig 1: Installing Selector Cable
G06941305Courtesy of MAZDA MOTORS CORP.
