Vehicles Without Power Seat Control Module

Disconnect the power seat switch connector.
Inspect for continuity between the power seat switch connector terminals using an ohmmeter.
- If not as specified, replace the power seat switch.

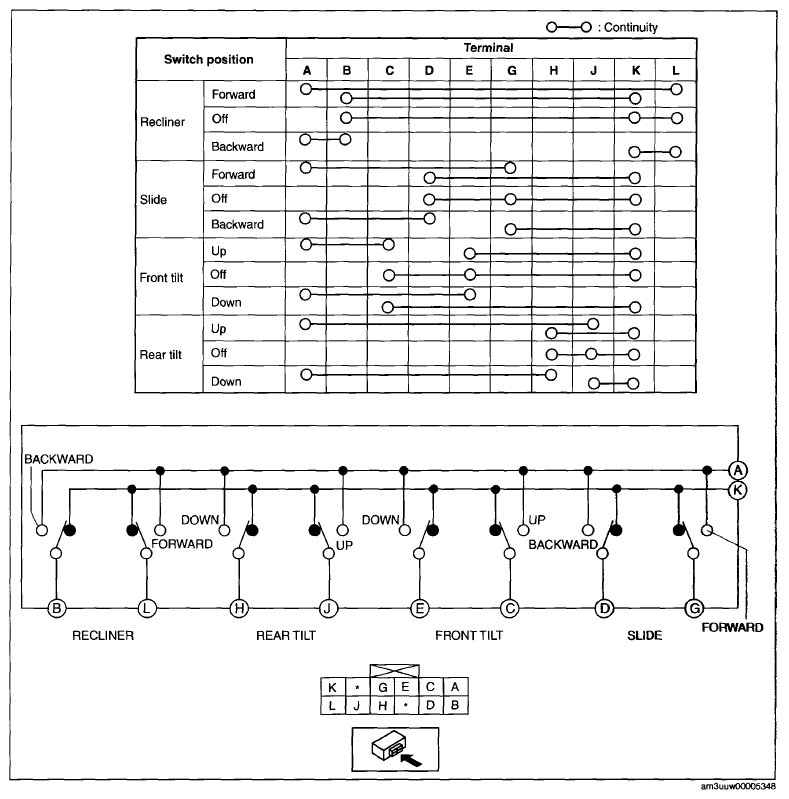

  Fig 1: Power Seat Switch Connector Terminals Continuity Chart (Vehicle Without Power Seat Control Module)
  Courtesy of MAZDA MOTORS CORP.
