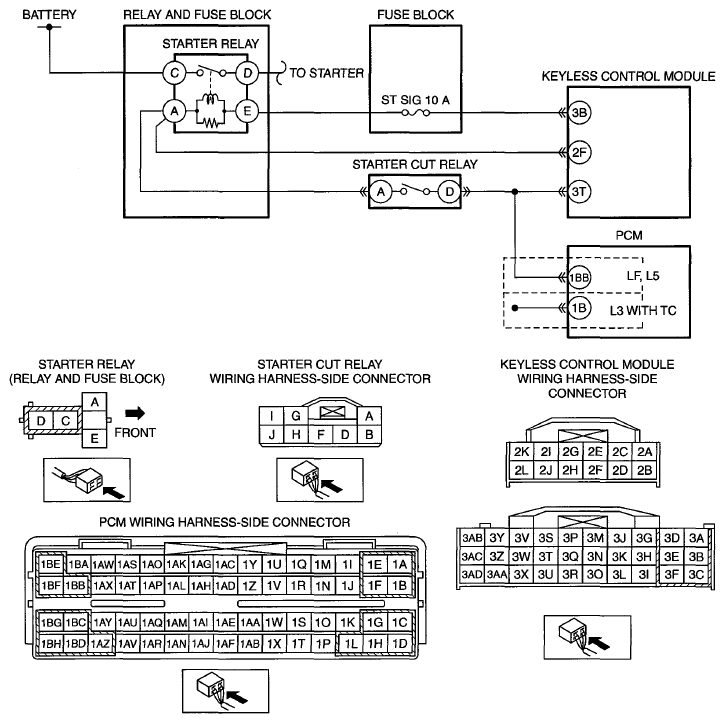

DTC P0615:11 (ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM) DETECTION CONDITION AND POSSIBLE CAUSE - MTX
| DESCRIPTION |
Short to ground in starter relay circuit |
| DETECTION CONDITION |
- Starter monitor input voltage is less than the specification for 0.075 s
when the ignition switch is off. Starter relay input voltage is less than the specification for 0.050 s
during cranking the engine.
|
| POSSIBLE CAUSE |
- Starter relay malfunction
- Starter cut relay connector or terminals malfunction
- Starter cut relay malfunction
- PCM connector or terminals malfunction
- Keyless control module connector or terminals malfunction
- Short to ground in starter relay circuit
- Short to ground in wiring harness between the following terminals:
- Starter relay terminal E-Keyless control module terminal 3B
- Starter relay terminal A-Keyless control module terminal 2F
- Starter relay terminal A-Starter cut relay terminal A
- Starter cut relay terminal D-PCM terminal 1BB (LF, L5)
- Starter cut relay terminal D-PCM terminal 1B (L3 WITH TC)
- Starter cut relay terminal D-Keyless control module terminal 3T
- ST SIG 10 A fuse malfunction
- PCM malfunction
- Keyless control module malfunction
|
