DTC P0615:12 (ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM) DETECTION CONDITION AND POSSIBLE CAUSE - ATX
| DESCRIPTION |
Short to power supply in starter relay circuit |
| DETECTION CONDITION |
- Starter relay input voltage is above the specification for 0.075 s
when the ignition switch is off.
|
| POSSIBLE CAUSE |
- Starter relay malfunction
- TR switch connector or terminals malfunction
- TR switch malfunction
- PCM connector or terminals malfunction
- Keyless control module connector or terminals malfunction

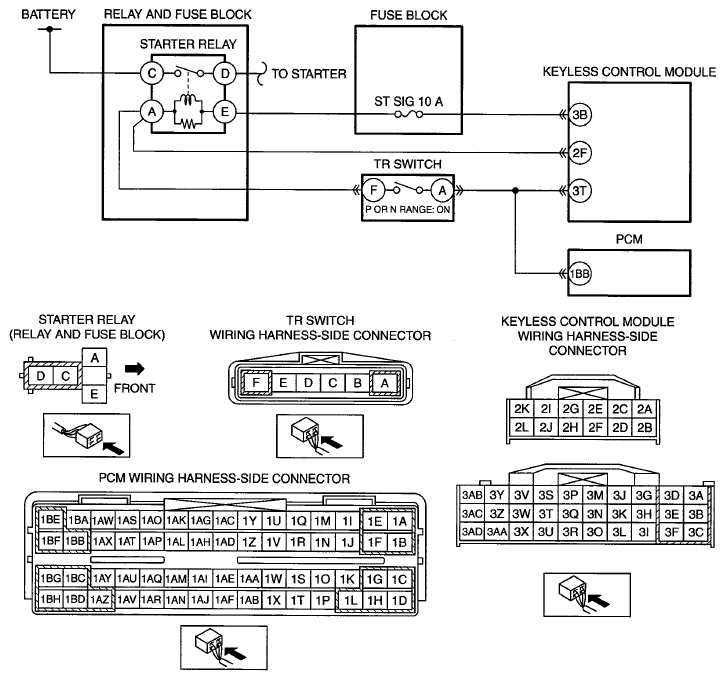

- Short to power supply in wiring harness between the following terminals:
- Starter relay terminal E-Keyless control module terminal 3B
- Starter relay terminal A-Keyless control module terminal 2F
- Starter relay terminal A-TR switch terminal F
- TR switch terminal A-PCM terminal 1BB
- TR switch terminal A-Keyless control module terminal 3T
- PCM malfunction
- Keyless control module malfunction
|
