DTC P0615:12 [Advanced Keyless Entry And Push Button Start System]: MTX: Notes
WARNING: This page is about a different car, the 2010 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

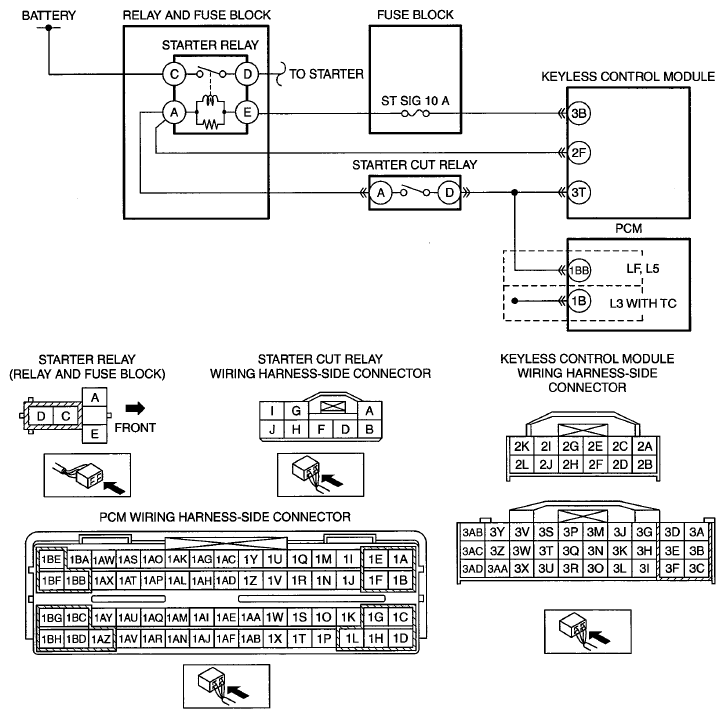

DTC P0615:12 (ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM) DETECTION CONDITION AND POSSIBLE CAUSE - MTX
| DESCRIPTION |
Short to power supply in starter relay circuit |
| DETECTION CONDITION |
- Starter relay input voltage is above the specification for 0.075 s
when the ignition switch is off.
|
| POSSIBLE CAUSE |
- Starter relay malfunction
- Starter cut relay connector or terminals malfunction
- Starter cut relay malfunction
- PCM connector or terminals malfunction
- Keyless control module connector or terminals malfunction
- Short to power supply in wiring harness between the following terminals:
- Starter relay terminal E-Keyless control module terminal 3B
- Starter relay terminal A-Keyless control module terminal 2F
- Starter relay terminal A-Starter cut relay terminal A
- Starter cut relay terminal D-PCM terminal 1BB (LF, L5)
- Starter cut relay terminal D-PCM terminal 1B (L3 WITH TC)
- Starter cut relay terminal D-Keyless control module terminal 3T
- PCM malfunction
- Keyless control module malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
