DTC P081C:62 [Advanced Keyless Entry And Push Button Start System]: Notes
WARNING: This page is about a different car, the 2010 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
DTC P081C:62 (ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM) DETECTION CONDITION AND POSSIBLE CAUSE
| DESCRIPTION |
Mis-match signal between CAN and P range switch |
| DETECTION CONDITION |
- CAN and P range switch signals do not correspond when the ignition switch is ON.
|
| POSSIBLE CAUSE |
- Multiplex communication system DTC is stored
- Selector lever component connector or terminals malfunction
- Keyless control module connector or terminals malfunction

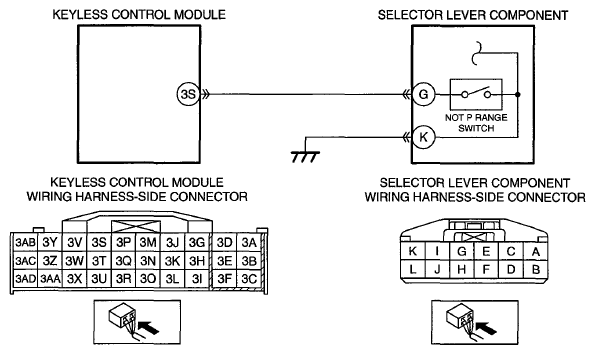

- Short to ground in the wiring harness between the following terminals:
- Selector lever component terminal G-Keyless control module terminal 3S
- Short to power supply in the wiring harness between the following terminals:
- Selector lever component terminal G- Keyless control module terminal 3S
- Selector lever component terminal G-Keyless control module terminal 3S Selector lever component malfunction
- Open circuit in the wiring harness between the following terminals:
- Selector lever component terminal G-Keyless control module terminal 3S
- Keyless control module malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
