DTC P1708:29 [Advanced Keyless Entry And Push Button Start System]: Notes
WARNING: This page is about a different car, the 2010 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

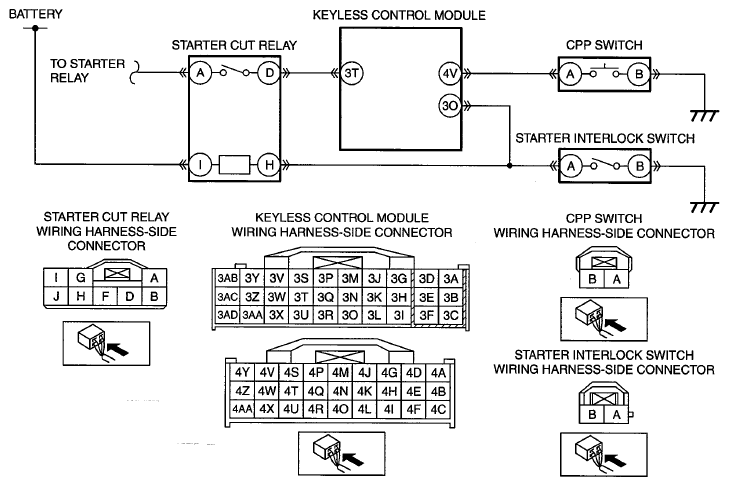

DTC P1708:29 (ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM) DETECTION CONDITION AND POSSIBLE CAUSE
| DESCRIPTION |
Erratic signal of CPP switch and/or starter interlock switch |
| DETECTION CONDITION |
- CPP switch and starter interlock switch signals do not correspond.
- Starter interlock switch stuck on for 0.2 s
when the CPP switch is off.
- CPP switch stuck off when the starter interlock switch on.
- Starter cut relay stuck on for 0.075 s
when the starter interlock switch is off.
- Starter cut relay stuck off for 0.075 s
when the starter interlock switch is on.
|
| POSSIBLE CAUSE |
- Starter interlock switch connector or terminals malfunction
- Starter interlock switch malfunction
- Keyless control module connector or terminals malfunction
- Short to ground in wiring harness between the following terminals:
- Starter interlock switch terminal A-Keyless control module terminal 3O
- CPP switch connector or terminals malfunction
- CPP switch malfunction
- Open circuit in wiring harness between the following terminals:
- CPP switch terminal A-Keyless control module terminal 4V
- CPP switch terminal B-Body ground
- Starter cut relay connector or terminals malfunction
- Starter cut relay malfunction
- Short to ground or open circuit in wiring harness between the following terminals:
- Stater relay-Starter cut relay terminal A
- Short to power supply in wiring harness between the following terminals:
- Starter cut relay terminal D-Keyless control module terminal 3T
- Keyless control module malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
