AFS (Adaptive Front Lighting System) Control Module Removal/Installation

NOTE:
  • Perform the auto leveling system initialization after newly replacing the AFS control module to assure that the auto leveling system operates correctly.
  1. Disconnect the negative battery cable.
  2. Remove the following parts:
    1. Passenger-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION ).
    2. Passenger-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION ).
    3. Dashboard undercover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION ).
    4. Grove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION ).
  3. Remove in the order indicated in the table.

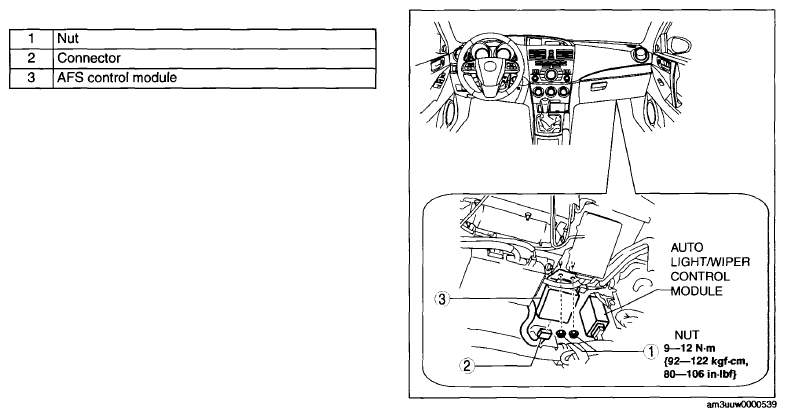

    Fig 1: Auto Light Wiper Control Module With Torque Specifications
    G07875773Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
  5. Perform the auto leveling system initialization after newly replacing the AFS control module. (See AUTO LEVELING SYSTEM INITIALIZATION ).
