Fan Control Module Connector End View

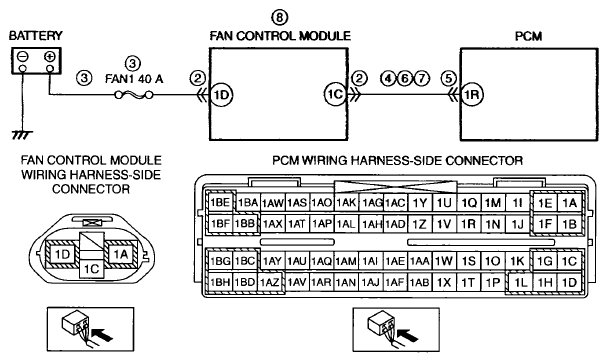

Fig 1: Fan Control Module Connector End View
G07864528Courtesy of MAZDA MOTORS CORP.

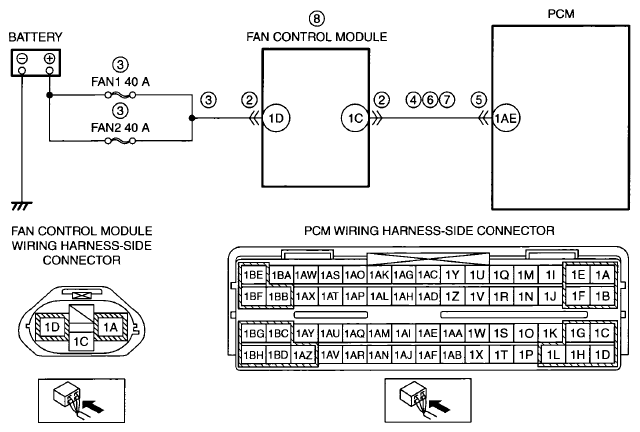

Fig 1: Fan Control Module Connector End View
G07864435Courtesy of MAZDA MOTORS CORP.
