Auto Light/Wiper Control Module Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the following parts:
    1. Passenger-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION ).
    2. Passenger-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION ).
    3. Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION ).
    4. Grove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION ).
  3. Remove in the order indicated in the table.

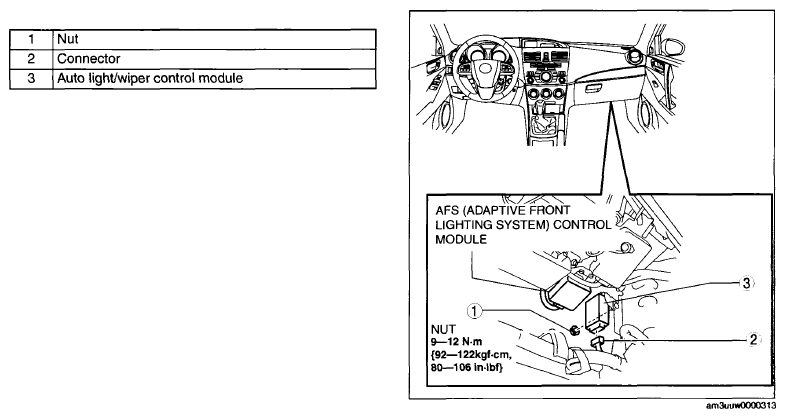

    Fig 1: Auto Light/Wiper Control Module And Connector With Torque Specifications
    G07875884Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
