Security And Locks Location Index
›
Advanced Keyless Entry And Push Button Start System/Immobilizer System
Advanced Keyless Entry And Push Button Start System/Immobilizer System

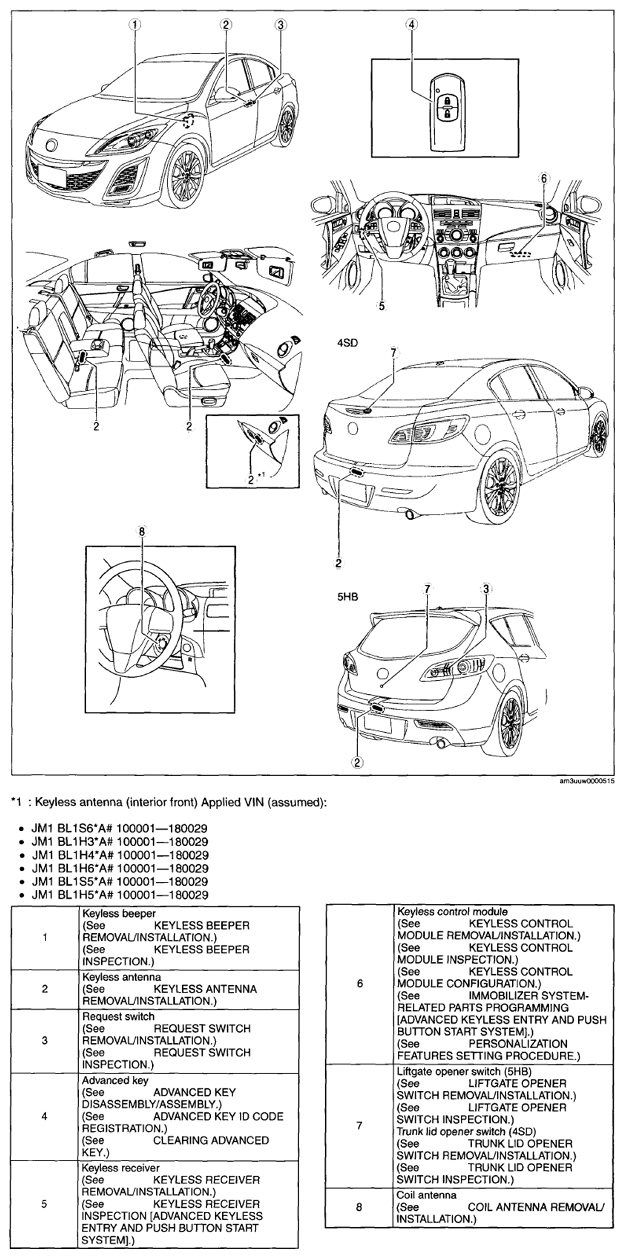

Fig 1: Identifying Security And Locks Parts Location - Advanced Keyless Entry And Push Button Start System/Immobilizer System
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
