Auto-Dimming Mirror Installation

  1. Install the auto-dimming mirror onto the base.
  2. Connect the auto-dimming mirror connector.
  3. Install the rain sensor. (See RAIN SENSOR REMOVAL/INSTALLATION ).
  4. Install the rain sensor cover. (See RAIN SENSOR REMOVAL/INSTALLATION ).

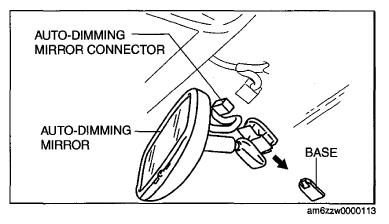

    Fig 1: Installing Auto-Dimming Mirror Onto Base
    G06731859Courtesy of MAZDA MOTORS CORP.
