Brake Pipe Removal Note

Place an alignment mark on the brake pipe and DSC HU/CM.
Apply protective tape to the connector to prevent brake fluid from entering.
Remove the brake pipe.

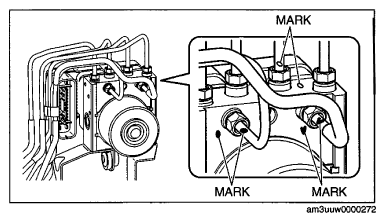

Fig 1: Identifying Alignment Mark On Brake Pipe And DSC HU/CM
Courtesy of MAZDA MOTORS CORP.
