Engine Room Side

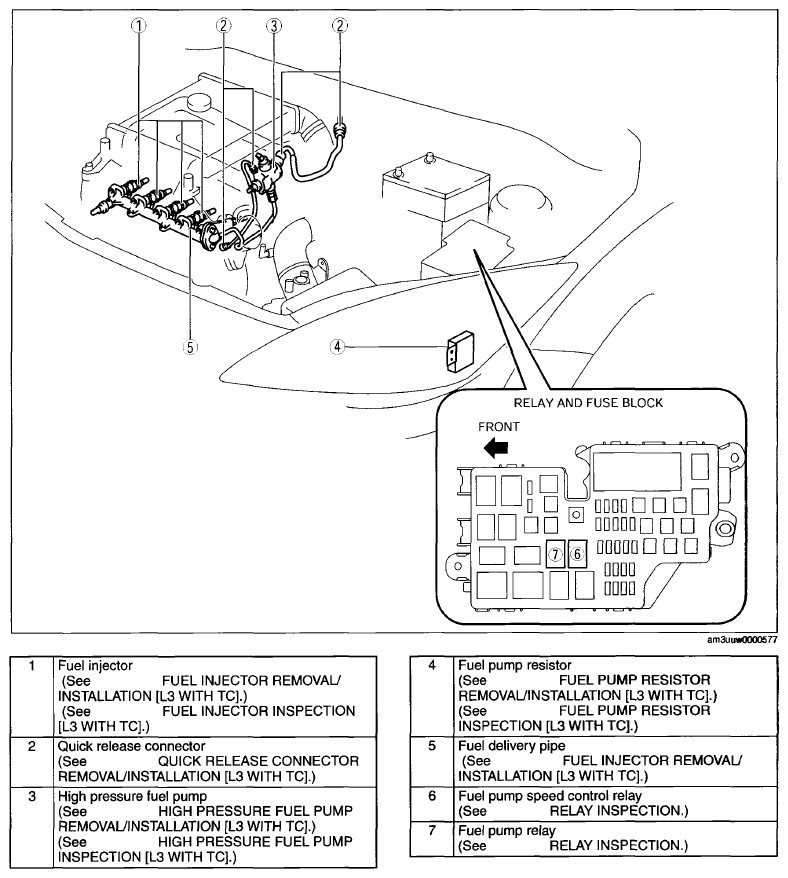

Fig 1: Identifying Fuel System Components Location - Engine Room Side (L3 With TC)
G07868093Courtesy of MAZDA MOTORS CORP.
