Ignition System [L3 With TC]
›
Ignition System Location Index
Ignition System Location Index

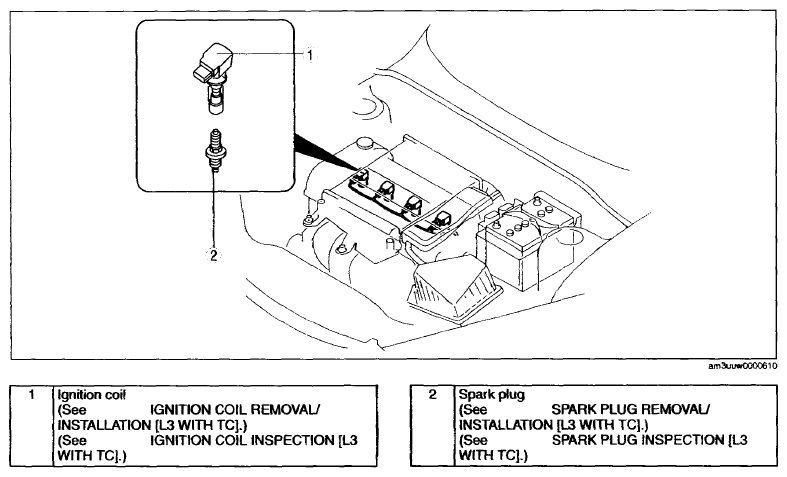

Fig 1: Identifying Ignition System Location
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
