Accessory Socket Removal Note
WARNING: This page is about a different car, the 2011 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

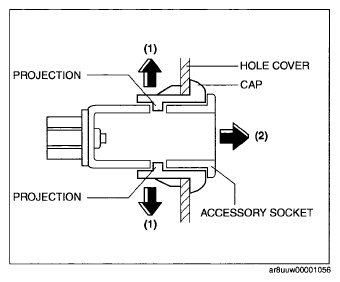

- Remove the accessory socket in the direction of the arrow (2) shown in the figure while opening the caps in the direction of the arrow (1) shown in figure using a tape-wrapped fastener remover.
Courtesy of MAZDA MOTORS CORP.
