Back-Up Light Switch Removal/Installation

WARNING: This page is about a different car, the 2011 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Remove the transmission. (See TRANSMISSION REMOVAL/INSTALLATION [P66M-D] .)

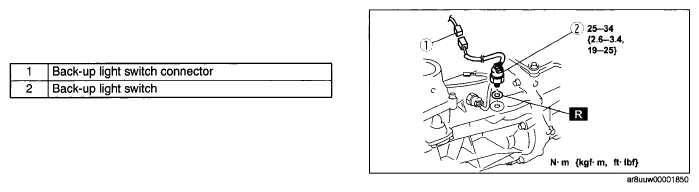

Fig 1: Back-Up Light Switch And Connector With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
