Front Combination Light Removal/Installation

WARNING: This page is about a different car, the 2011 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

Incorrect servicing of the discharge headlights could result in electrical shock. Before servicing the discharge headlights, always refer to the discharge headlight service warnings. (See DISCHARGE HEADLIGHT SERVICE WARNINGS .)

Disconnect the negative battery cable.
Remove the front bumper. (Refer to the FRONT BUMPER REMOVAL/INSTALLATION in appropriate Body Panels article .)
Remove in the order indicated in the table.

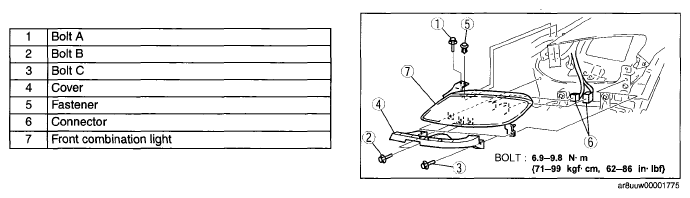

Fig 1: Front Combination Light Replacement Components With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
Adjust the headlight aiming. (See HEADLIGHT AIMING )
