A/F Sensor Connector End View
A/F Sensor Connector End View

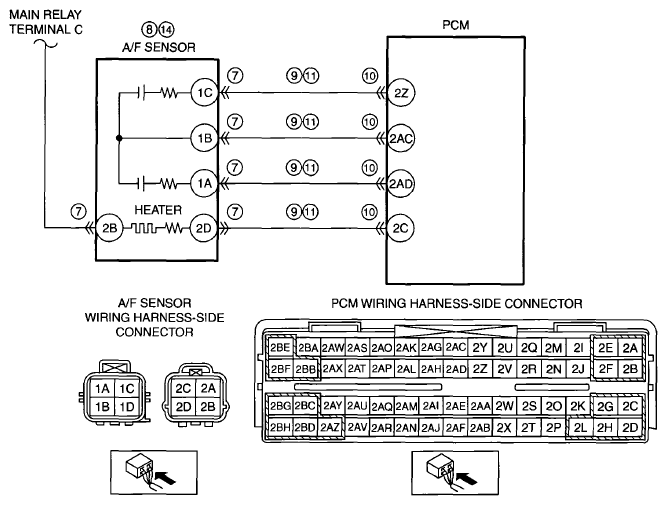

Fig 1: A/F Sensor Connector End View
Courtesy of MAZDA MOTORS CORP.
Fig 1: A/F Sensor Connector End View
Courtesy of MAZDA MOTORS CORP.
Fig 1: A/F Sensor Connector End View
Courtesy of MAZDA MOTORS CORP.
Fig 1: A/F Sensor Connector End View
Courtesy of MAZDA MOTORS CORP.
