Ambient Temperature Sensor Connector End View
Ambient Temperature Sensor Connector End View

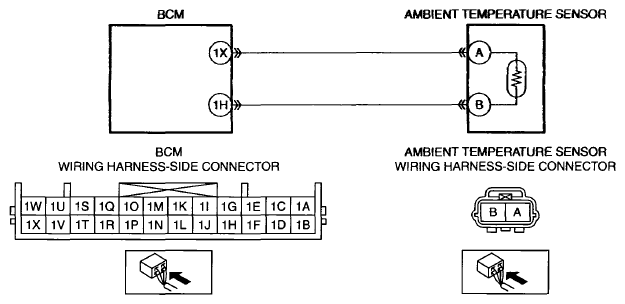

Fig 1: Ambient Temperature Sensor Connector End View
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
