CKP Sensor Connector End View
CKP Sensor Connector End View

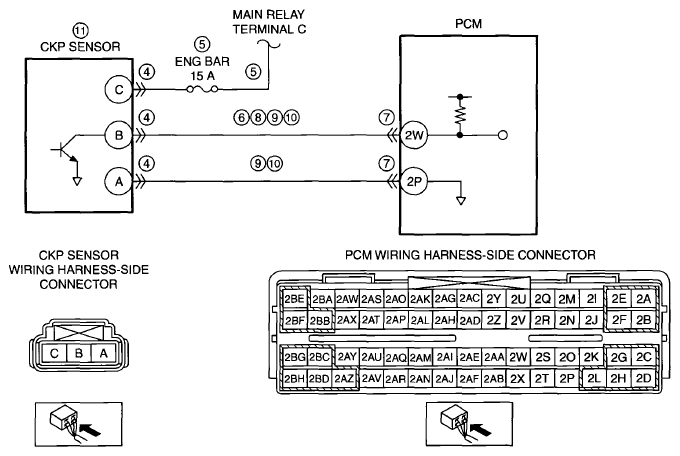

Fig 1: CKP Sensor Connector End View
Courtesy of MAZDA MOTORS CORP.
Fig 1: CKP Sensor Connector End View
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
