Clock Spring Connectors Connector End View - Two-Step Deployment Control System (Vehicles With Steering Switch)

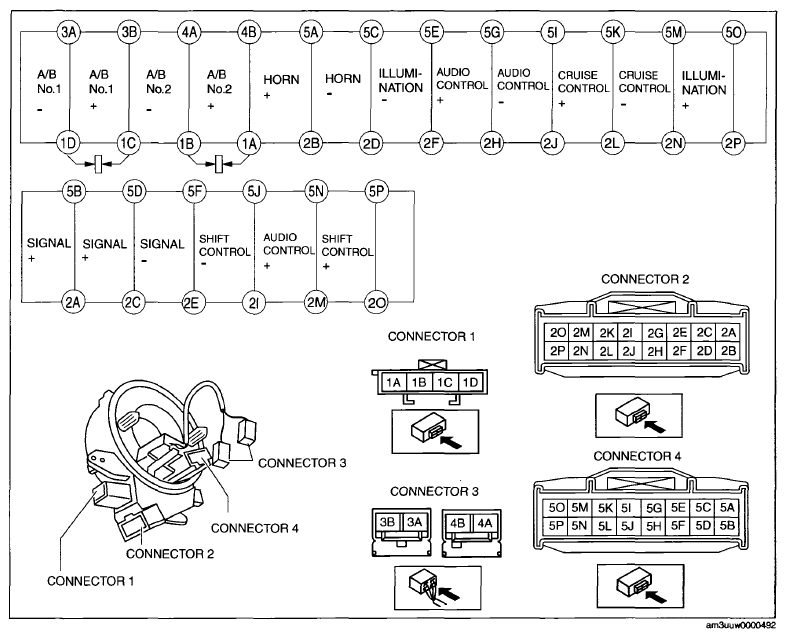

Fig 1: Clock Spring Connectors Connector End View - Two-Step Deployment Control System (Vehicles With Steering Switch)
G07878851Courtesy of MAZDA MOTORS CORP.
