Driver-Side Side Air Bag Module Malfunction System Connector End View
Driver-Side Side Air Bag Module Malfunction System Connector End View

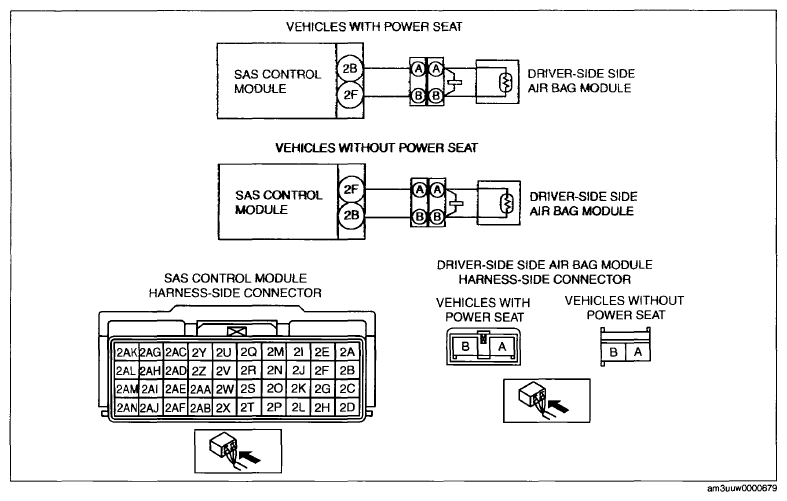

Fig 1: Driver-Side Side Air Bag Module Malfunction System Connector End View
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
