MAP Sensor Connector End View
MAP Sensor Connector End View

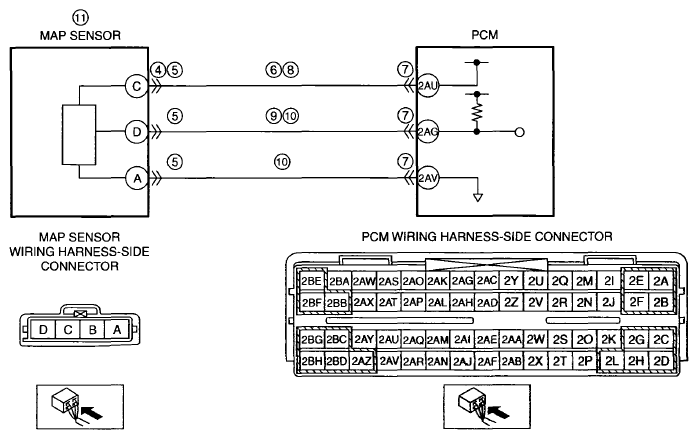

Fig 1: MAP Sensor Connector End View
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
