3 Mazdaspeed, 2.3 4
›
Repair and Diagnosis
›
Quick Lookups
›
Wiring Diagrams
›
OEM Connector End Views
›
Connector End Views
›
MAP Sensor/Boost Air Temperature Sensor Connector End View
MAP Sensor/Boost Air Temperature Sensor Connector End View

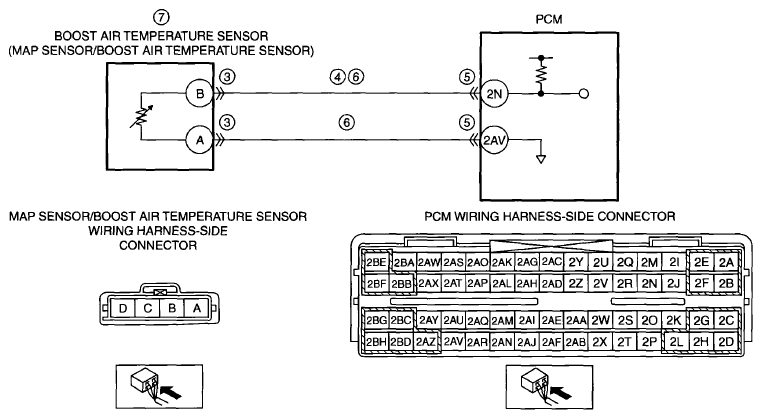

Fig 1: MAP Sensor/Boost Air Temperature Sensor Connector End View
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
