Steering Switch Connector End View

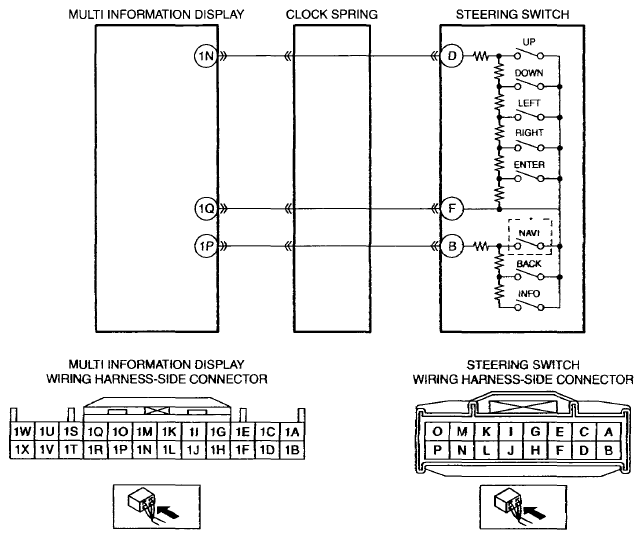

Fig 1: Steering Switch Connector End View
G07874979Courtesy of MAZDA MOTORS CORP.

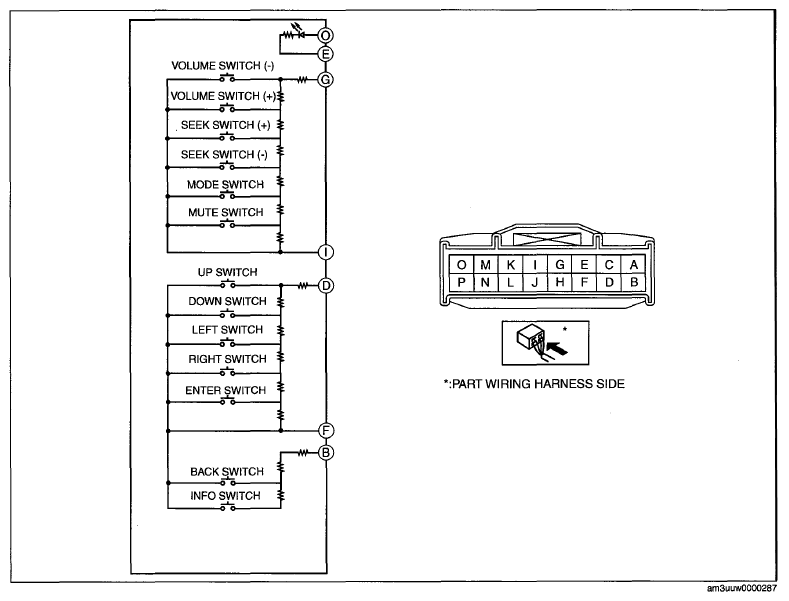

Fig 1: Steering Switch Connector End View
G06732379Courtesy of MAZDA MOTORS CORP.
