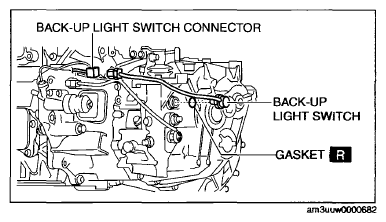

Back-Up Light Switch Removal/Installation
- Disconnect the negative battery cable.
- Disconnect the back-up light switch connector.
- Remove the aerodynamic under cover No. 2. (See AERODYNAMIC UNDER COVER NO. 2 REMOVAL/INSTALLATION ).
- Remove the back-up light switch with the gasket.
- Install a new gasket and the back-up light switch to the transaxle case.
Tightening torque
29-52 N.m {3.0-5.3 kgf.m, 22-38 ft.lbf}
- Install the aerodynamic under cover No. 2. (See AERODYNAMIC UNDER COVER NO. 2 REMOVAL/INSTALLATION ).
- Connect the back-up light switch connector.
- Connect the negative battery cable.
